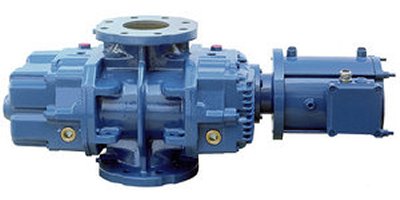

Thanks to the worldwide largest canned motor- and hermetic series the customer can select from an extensive modular system the optimal blower-motor type for his application. Machines are available for the application concerning non-aggressive gases (PVD-applications) as well as concerning aggressive gases (CVD-applications) and with different motor variants for operation on lock chambers or process chambers. Furthermore, the Aerzen blowers distinguish themselves by a high mechanical load capacity (up to 250 mbar), based on which the pumping down times can be reduced considerably. Besides, the water cooling of the motor of the Aerzen blowers makes the application under clean room conditions possible. The blowers are (internally) type-tested and certified for the ATEX zone 0.

Type of construction: Positive Displacement Blowers
Volume flow: approx. 105 up to 15.330 m³/h
Size: 14
Medium: air, neutral and agressive gases
Conveying: oil-free
Suction operation: Vacuum from 10 ^-5 mbar up to approx. 200 mbar abs

• Biggest canned blower series with 14 sizes and volume flows of 105 m³/h to 15.330 m³/h
• ATEX-certification for zone 0 (internal)
• Optimum selection possibilities by 4 different motor variants
• Pressure ranges from 10-2 to 10-5 mbar abs.
• High mechanical load (up to 150 mbar) and therefore, decrease of pump-down periods
• Only little consumptions of water, nitrogen and oil
• Appropriate for the application under clean-room conditions
• Big control range by means of frequency converter from 1.450 to 7.400 rpm resp. from 1.240 to 2.900 rpm
• Vertical and horizontal conveying direction possible
• Aerzen reliability
• Excellent price-/performance ratio

Wherever air and gases of most various kinds are conveyed, compressed or measured twin-shaft Positive Displacement machines made by Aerzener are used. A wide range of Positive Displacement blowers and Screw compressors made by the Aerzener Maschinenfabrik is available for almost all the branches of the industry.

Application fields of Aerzener rotary piston machines

Here are some application fields of Aerzener rotary lobe compressors, positive displacement blowers, screw compressors and rotary piston gas meters:

• Chemical- and process technology
• Compressed-air technology
• Pneumatic transport for bulk material handling
• Environmental technology
• Vacuum technology
• Refrigeration- and climate technology
• Process gas technology
• Steel industry
• Transport shipping
