Vario - C - Motor Driven Diaphragm Metering Pumps

0.511.522.533.544.55 (0 votes)
Vario - C - Motor Driven Diaphragm Metering Pumps

ProMinent Vario C pumps are designed for simple applications. They are espeically suitable for continuous metering.

Advantages

Advantages


  • Good suction capacity, smooth metering stroke and contantly exact metering
  • High process quality: metering reproducibiltiy better than ±2 %
  • Robust design: strong drive motor, shock and chemical resistant glass fibre reinforced plastic housing
  • Good adjustment to defined applications thanks to 4 different gear reductions and 2 liquid end sizes in 2 materials

Application Areas

Application Areas


  • Time-controlled chemical addition in the cooling water circuit
  • Continuous chemical addition in water treatment at constant volume streams

Features

Features


  • Capacity range 8 - 75 l/h, 10 - 4 bar
  • Stable corrosion-resistant plastic housing with protection class IP65
  • Stroke length: 3 mm, adjustable by means of self-arresting turning knob in 1% steps
  • Liquid end materials: PVDF, Stainless steel 1.4571/1.4404
  • Metering reproducibility at defined conditions and correct installation better than ±2 % (stroke length range 30-100%)
  • Drive available with three phase ac standard motor or single phase alternating current motor (optionally)

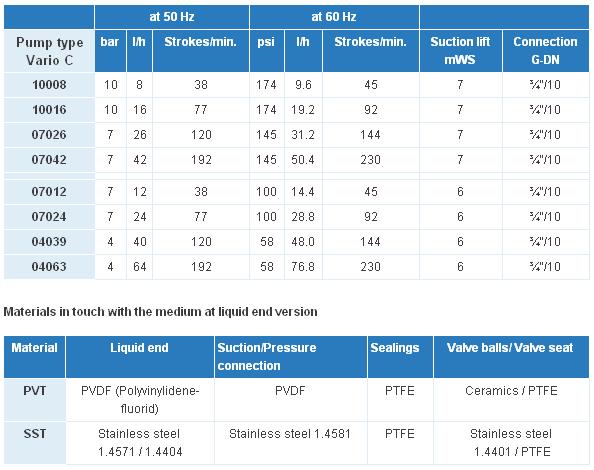

Technical Data

Technical Data



ProMinent Dosiertechnik GmbH
ProMinent Dosiertechnik GmbH
Im Schuhmachergewann 5-11
Heidelberg, Baden-Württemberg; 69123
