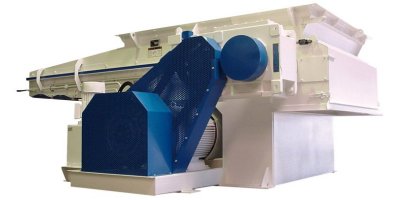

VAZ 1600 - Single Shaft Shredders Medium-Duty Series
From Shredders - Single-Shaft Shredders (VAZ) Medium-Duty Series
(0 votes)
Medium-DutySeriesVAZ1600Logo-400.jpg)
The VAZ 1600 from the medium-duty single-shaft shredder series is available in the sizes S and M. Different rotor designs and geometries mean the VAZ 1600 is capable of shredding wood waste, paper, data storage media, solid plastics, plastic film, industrial waste, packaging and much more. In order to increase the throughput when shredding bulky and very light materials, the machine can also be fitted with an optional bridge-breaker. In addition to the standard drive via asynchronous motor, the patented HiTorc drive is also available, which permits variable speed adjustment and reduces power consumption up to 60% compared to the standard drive system. The drive capacities range from 37 to 90 kW with the standard drive. Machines provided with the HiTorc drive can have a drive capacity of 62 up to 110 kW. The output can vary between 600 and 3.000 kg/h, depending on the version and screen mesh size.
Application
Wood waste, paper, data medium, textiles, packaging material and plastics.
Single-Shaft Shredder Medium Series:
- 370 mm and 500 mm rotor diameter
- Shredding to particle sizes of approx. 16-100 mm on request
- Capacity up to 10 t
- Hydraulic feeding ram
- Multiple protection against tramp material
Drive Version, Standard
Tried and tested shredder for single-stage shredding with a constant rotor speed of 150 rpm. Main drive via e-motor, cardan shaft, hydraulic coupling and gears.
Drive Version, Hitorc
Shredder for single-stage shredding with a variable rotor speed of approx. 0-360 rpm with energy saving HiTorc drive. The automatic speed controller allows the rotor to turn quickly when the materials are easy to shred and more slowly with a high torque when processing tougher materials. Thus, single-stage shredders enable an up to 70 % higher capacity in most applications, while the HiTorc drive enables energy savings of up to 60 %.
Rotor System
Profiled rotor with toothed counter knives - a Vecoplan AG innovation. A choice of 40 or 60 mm cutting crowns or fl at cutters. Available with single or double no. of cutters.

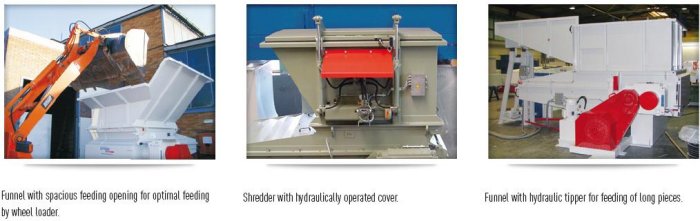

Versions And Applications
|
