von Taine - Magnetically-Coupled Rotary Centrifugal Pumps
(0 votes)
ProMinent von Taine pumps are magnetically-coupled rotary pumps for metering fluid chemicals. Metering is effected free of leakages, as the power transfer between motor and impeller is effected via a solenoid coupling. ProMinent von Taine centrifugal pumps feed media up to 22 500 l/h and up to a suction height of 23.5 meters. The capacity being strongly dependent from the counter-pressure, the characteristic line must absolutely be observed.
Advantage
- Leakage-free metering of fluid chemicals
- No charge to the environment
- No loss of chemicals
Features
- Metering capacity up to 22 500 l/h
- Delivery head up to 23.5 mWs
- Liquid end in PP or PVDF optionally
- Coupling between motor and impeller via solenoid-coupling
- Bearing and trunnion link of oxid ceramics
- Housing sealing of FPM
- Sealing for suction and discharge connection of FPM
- Pump is standard absorbing (needs supply)
- Hydraulic connection with pipe thread according to DIN ISO 228-1
Operation Safety
- Protect pump from dry-running

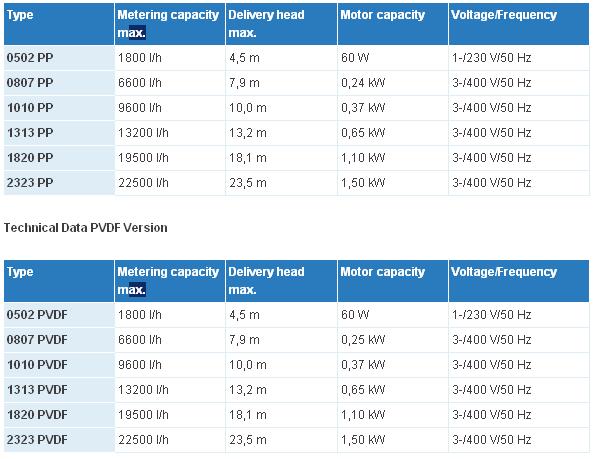

Technical Data
|
