The Type SOS - SideWinder Odor ScrubberTM - is a low profile multistage gas absorption system for capacities to 20,000 cfm. The system contains two or more sumps for use of two or more chemical solutions to treat odors emanating from wastewater treatment plants, composting sites, and other industrial sites that generate odors. Caustic and bleach solutions treat hydrogen sulfi de (H2S) and other sulfur bearing compounds, indoles, skatoles, and other organic compounds. Sulfuric acid solutions treat ammonia, amines, and other basic compounds.

The system is complete with multiple contact stages, integral sumps, preassembled internals, chemical recirculation and metering pumps, pH and ORP instrumentation, NEMA 4X control panel, system fan, inlet duct transition, and exhaust stack.

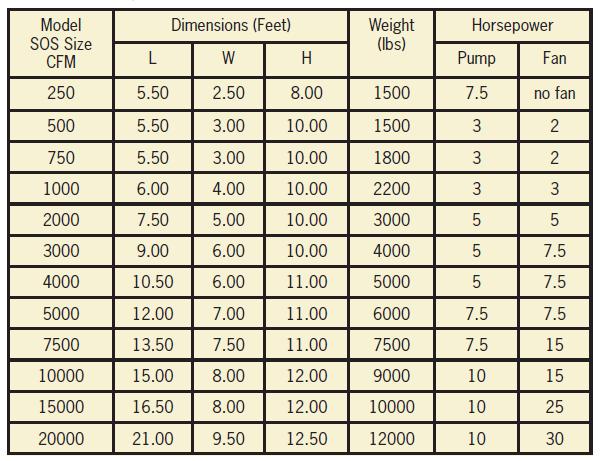

The model size numbers indicate the scrubber exhaust rate in CFM.

Weight is based on an empty single fan system.

Footprint dimensions “L” & “W” do not include the fan dimension.

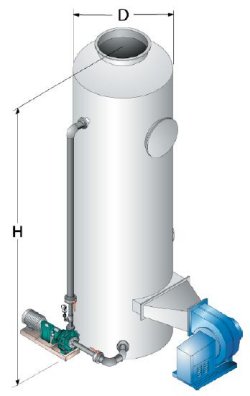

The Type VPT - Vertical Packed Tower - is the standard vertical, counter-current packed tower scrubber system for large fl ows of gas, normally larger than 20,000 cfm capacity. Again, multiple stages in series can be provided to make possible the use of multiple scrubbing solutions. On-site bleach generation systems can also be provided to electrolytically produce the sodium hypochlorite (NaOCl) scrubbing solution.

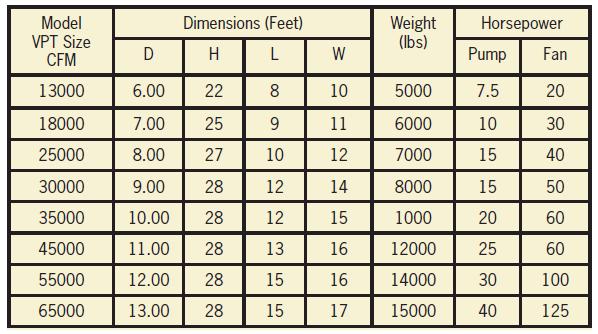

The model size numbers indicate the scrubber exhaust rate in CFM.

Weight is based on an empty single fan system.

Footprint dimensions “L” & “W” do not include the fan dimension.
