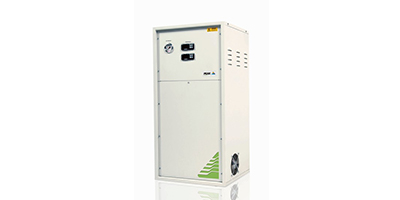

The ZA Range of Zero Air Generators is designed specifically for use as flame gas for GC Applications, which require zero air for operation. Units are available with or without internal air compressors and some models are further available as 19” Rack Versions.
Features & Benefits
- Flexible – Available with or without internal air compressor
- Purity – Zero Air with less than 0.1ppm of hydrocarbon content (as methane)
- Durable – Few moving parts with minimum maintenance requirements
- Single Source Solution – One generator can cater for the requirements of multiple applications
- Simple Installation – Generator designed as plug & play system
- Economical – More cost effective than any other gas supply method
- Convenient – Gas on demand, no health hazards, no need to worry about running out of gas
Technical Specifications
- Max Flow Rate (Outlet) for specified CH4 Concentration: 1,500 cc/min - 30,000cc/min ATP
- Outlet CH4 Concentration (as Methane): <0.1 ppm
- Max Inlet CH4 Concentration (as Methane): 100 ppm
- Particles >0.01micron: None
- Electrical Requirements:
- ZA015-ZA180 - 110v 60Hz 4.0A/ 220v 50Hz 2.0A
- ZA300 – 110v 60Hz 4.5A/ 220v 50Hz 8.9A
- Electrical Requirements with internal air compressor: ZA035A-ZA180A - 110v 60Hz 7.0A/ 220v 50Hz 3.5A
- Dimensions:
- ZA015 – ZA180 – 25 x 16 x 51 cm / 17 x 18 x 35 ins
- ZA300 – 43 x 41 x 88 cm / 17 x 16 x 35 ins
- Dimensions with internal air compressor: ZA035A-ZA180A – 43 x 41 x 88 cm / 17 x 18 x 35 ins
- Dimensions 19” Rack: ZA015 – ZA180 – 18 x 48 x 43 cm / 7 x 19 x 17 ins
