Wind Rose Pro Software for Plotting Wind Roses

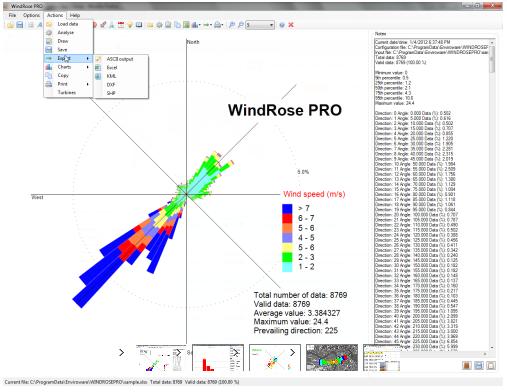

WindRose PRO is a Windows application for analysing and plotting directional variables starting from raw data or from their frequencies. It can be used to represent wind roses, but it is also possible to represent any other directional variable. A wind rose is a chart which gives a view of how wind speed and wind direction are distributed at a particular location over a specific period of time. It is a very useful representation because a large quantity of data can be summarised in a single plot. . Wind turbine power curves can be imported to WindRose PRO can be used to calculate the wind power potential of a specific location

DOWNLOADS

WindRose PRO 3 User Guide

» View All

Features

Loads AERMOD surface meteorological files
Loads ISC3ST meteorological files
Loads EnergyPlus Weather files
Loads ASCII fields delimited files
Loads Microsoft Excel files (XLS and XLSX)
Loads data as frequencies

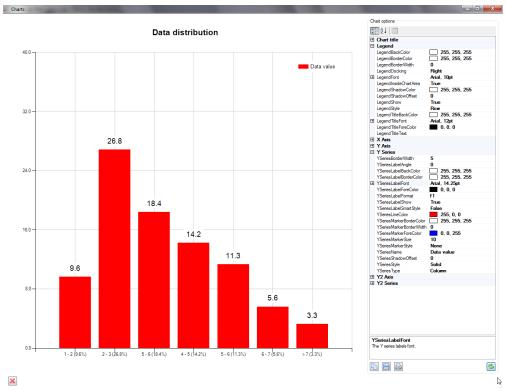

Automatically creates different types of charts
Saves plots and charts in many raster formats (BMP, JPG, PNG, GIF, and others)
Exports wind rose plots as DXF for CAD environments
Exports wind rose plots as ESRI shapefiles for GIS environments

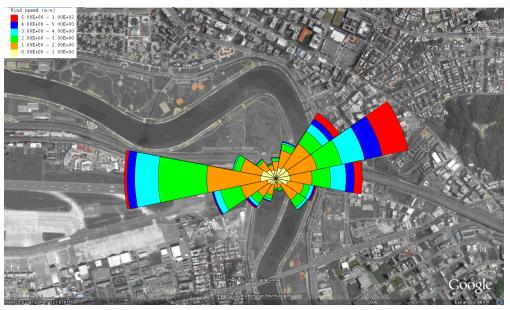

Exports wind rose plots as KML files for Google Earth

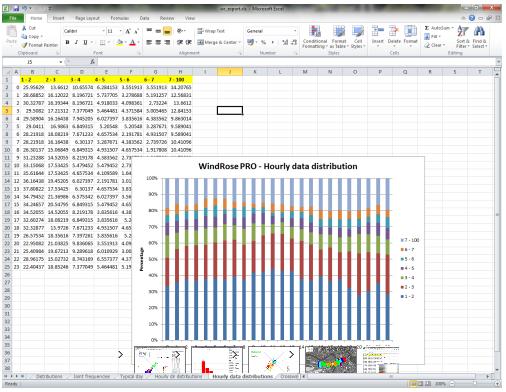

Exports numerical results in Microsoft Excel format (charts built inside)
Typical day is calculated when date and time are loaded
Date/time filtering according to year, month, day of the week, hour of the day or day/night hours
Possibility to read a third variable within the Microsoft Excel file
Plots wind roses with up to 360 directions
Plots minimum/average/maximum values
Plots of raw data

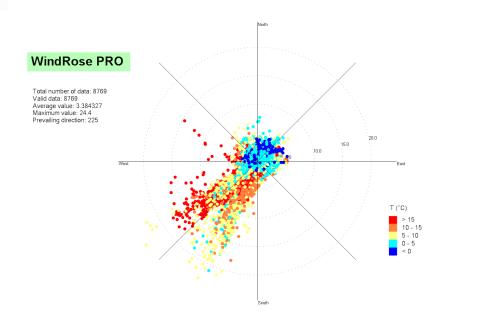

Plots of raw data of for the third variable
Plots of rays
Allows to edit and save the features of wind turbines
Calculates the theoretical wind power distribution
Calculates the theoretical wind power distribution with a specific wind turbine
Calculates crosswind, headwind and tailwind, and evaluates the correct orientation of a runway
Calculates the wind erosion emission factors for PM30, PM15, PM10 and PM2.5
Automatically produces a text summary of the data
Allows to add the user’s logo on plot
Title, legend, notes and user logo positioned with mouse dragging
Personalised notes can be saved in Rich Text File (RTF) format
