Scanntronik Mugrauer GmbH products

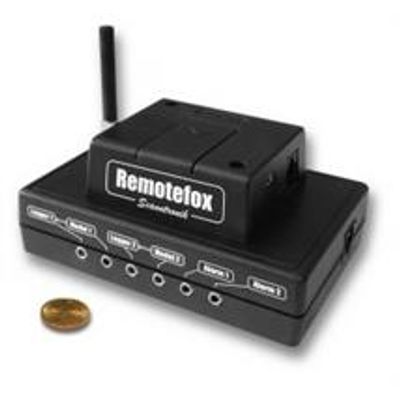

With Remotefox you get a powerfuldata transmission systemfor worldwide, mobile, and wireless retrieval of your measurement data. Simply connect up to two data logging systems including your extension modules (universal sensors) directly to Remotefox. You receive thecollected measurement dataentirely automatically and comfortably at regular intervals ase-mailattachments. Once on your computer, you can analyse the measurement data in the same way as if you were on-premise.

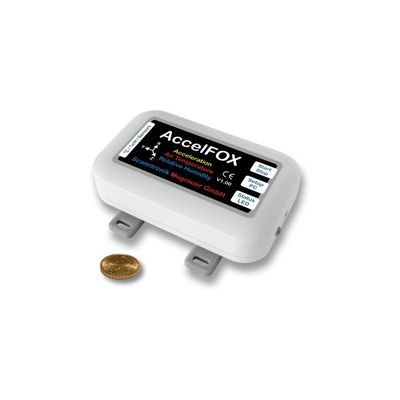

Measurement and analysis system for acceleration, temperature and humidity including memory for more than 2,000,000 readings. Analysis of acceleration, vibration, shocks, movement and orientation as well as humidity and air temperature. Fully automatic and extremely flexible recording of accelerations (vibration, shocks, angle, tremors, orientation,...) as well as humidity and air temperature thanks to high-resolution MEMS sensors and revolutionary digital CMOSens® technology !

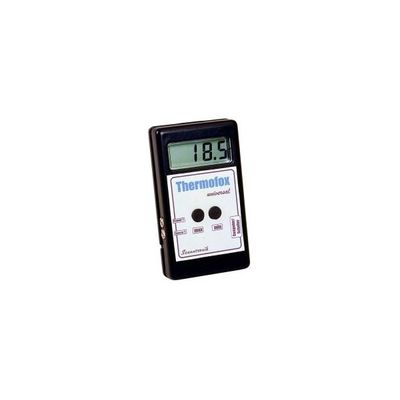

The smart temperature monitor and universal data logger for numerous sensors and measured variables. Wherever you need to display, monitor and record temperatures but also many other measured variables, the Thermofox Universal is the right data logger system for your application! An excellent solution for the temperature monitoring of cold storage houses, when transporting and storing goods, in air conditioning and heating system construction, in refrigeration engineering or for observing the weather. Wherever it is important to record temperatures without interruption for a long periode, Thermofox Universal provides a powerful and inexpensive solution.

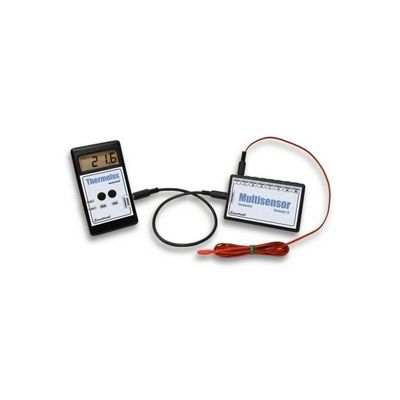

Monitoring and recording of up to 10 external and flexible temperature sensors as well as an internal environmental temperature sensor! The Thermofox Multisensor makes it possible to capture up to 11 temperatures concurrently. Eight up to 50 m long inexpensive NTC sensors can be attached directly at the socket connector of the sensor module, with two further NTC sensors being connected with the base unit. One sensor is inside the base unit.

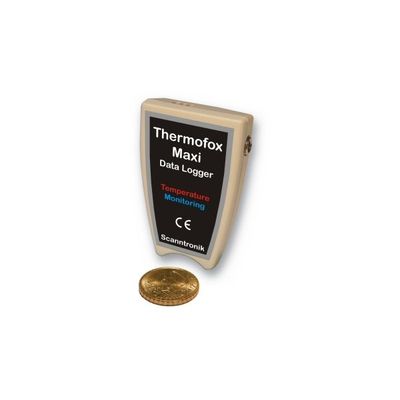

Fully automatic recording of ambient temperature including high-resolution minimum/maximum extreme value detection ! The Thermofox Maxi is one of the most modern miniature data loggers available today. In its casing, even smaller than a matchbox, it combines an air temperature sensor, a RISC microcontroller, a real-time clock and calendar, memory for up to 16,000 readings (optionally up to 64,000 readings) and a standard battery. All of this together forms a powerful analysis system. The data logger features highly simplified operation, high reliability, intelligent minimum/maximum extreme value recording and optimised battery life (the battery can be replaced at any time).

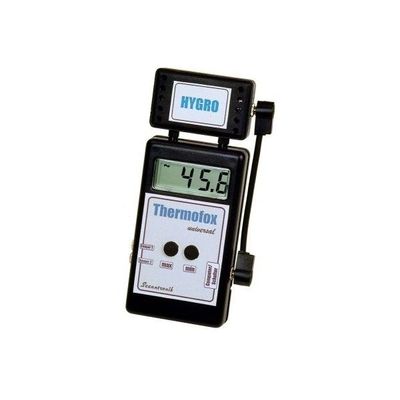

Much more versatile, comfortable and flexible as a mechanical hygrothermograph - and less expensive! Perfect for room climate analysis in apartments, offices and storage rooms, nurseries, museums and many more places. A multifunctional combination of our Thermofox Universal and our Hygro-Thermo-Sensor.

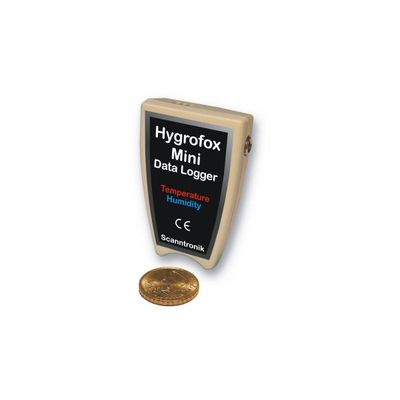

Recording of air temperature and relative / absolute humidity thanks to revolutionary digital CMOSens® technology ! With Hygrofox Mini you are provided with one of the state-of-the-art data logger systems of today. In its housing, which is not even the size of a match box, it combines an air temperature sensor, humidity sensor, RISC microcontroller, memory for up to 64,000 readings and a real-time clock into a powerful analysis system. The fully calibrated intelligent CMOSens® sensor for temperature and humidity is characterised in particular by its optimised long-term stability, high precision, reliability and extremely fast response time of less than 3 seconds. There is no need for complex re-calibrations since the sensor can simply be replaced directly on site if required. The integrated lithium battery supplies the system with power for up to two years and can be replaced at any time.

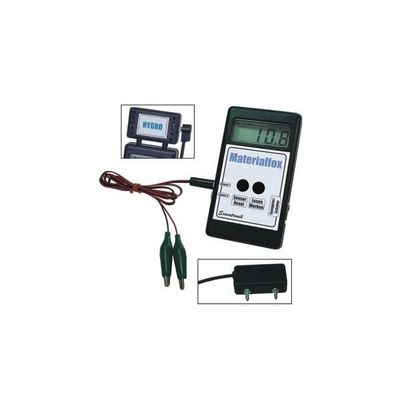

Expandable 2-channel data logger for monitoring, recording and analysing weight-, CM-, material-, and wood-moisture of many different materials ! The Materialfox is a powerful and flexible instrument for measuring moisture and recording the moisture status of a wide range of materials. Measurements can be taken either with the cone-headed measuring probes or two alligator measuring clips, attached to the test object. In the case of wood, the immediate readout gives the moisture content in percent (% WME = wood moisture equivalent) or a precise value of the wood`s current electrical resistance. This makes it possible to make precise statements regarding the condition of the material. While measuring the material moisture, the room temperature and air humidity surrounding the material can also be measured at the same time using a `Thermo-Hygro-Sensor`.

The Materialfox Multisensor was designed as an additional module for the Materialfox and simply connects to the universal bus of the data logger. In conjunction with the Materialfox Multisensor, our data logger can be connected to a further six or eight measuring locations (depending on the material being tested), where it analyses and records the various material moisture contents. As with standard operation, either cone-headed measuring probes or alligator measuring clips can be used. Special sensors are available on request.

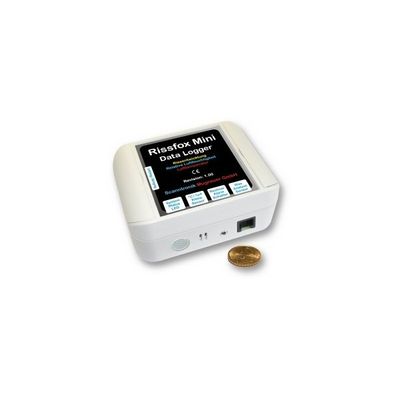

Analysis of crack displacements, change of length as well as relative / absolute humidity and air temperatureFully automatic recording of crack displacements, change of length, relative / absolute humidity and air temperature thanks to the high-resolution crack analysis sensor system and the revolutionary digital CMOSens® technology ! With the Rissfox Mini, you get one of the most advanced miniature data loggers of our time.
