How Long Does It Take for Waste Tire Recycling to Fuel Oil with Pyrolysis Equipment?

The time required for waste tire recycling to produce fuel oil using pyrolysis equipment is a key factor of concern for many in the industry. Generally speaking, it usually takes around 20 - 27 hours, and this time span is largely determined by the different types and configurations of the pyrolysis equipment employed.Typically, when utilizing pyrolysis equipment for converting waste tires into fuel oil, the duration often hovers around 20 - 27 hours, but this can vary significantly depending on the specific features and specifications of the equipment.

As a professional manufacturer and supplier of pyrolysis equipment with more than 30 years of rich experience, Huayin is here to provide you with a detailed breakdown. We`ll use our popular Model C pyrolysis equipment as a prime example.

Let`s first get a fundamental grasp of the Huayin Model C pyrolysis equipment designed for waste tire recycling. The Huayin Model C features a batch - type design, making it an ideal choice for medium - scale production operations. With a daily processing capacity ranging from 5 to 15 tons, it stands out for its user - friendly operation and straightforward installation process. At the same time, it effectively balances high efficiency with strict environmental protection standards.

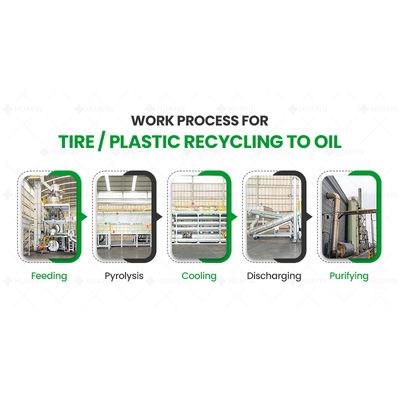

Now, let`s take an in - depth look at the process and the time it takes for the Huayin Model C pyrolysis equipment to process 10 tons of waste tires and transform them into valuable fuel oil through the pyrolysis process:

Step One: Feeding The initial step involves loading waste tires into the pyrolysis reactor. When using the hydraulic feeder, this process typically takes about 2 hours. Although manual feeding is also an option, it not only demands more time but also incurs higher labor costs.

Step Two: Pyrolysis Subsequently, the pyrolysis reactor is heated to a specific temperature, triggering the start of the pyrolysis process. Generally, when the temperature reaches approximately 120 degrees Celsius, oil gas begins to be released. This crucial pyrolysis stage usually lasts for around 12 hours.

Step Three: Cooling Once the oil gas is generated, it passes through the cooling system. Here, it undergoes a transformation and condenses into fuel oil. The Huayin pyrolysis equipment is equipped with a square box condenser, which provides excellent cooling performance. This cooling stage generally takes about 6 hours to complete.

Step Four: Discharging Before the final discharge, it is essential to cool down the pyrolysis reactor. Only after proper cooling can the carbon black and steel wire residues be safely removed from the reactor. This discharging process typically takes around 2.5 hours.

Step Five: Purifying Finally, the exhaust gas generated during the pyrolysis process is sent through the environmental protection system for purification. This ensures that the emissions meet all relevant environmental standards. It`s important to note that this purification process starts as soon as the exhaust gas is produced.

To sum up, when using the Huayin Model C pyrolysis equipment for waste tire recycling to produce fuel oil, the entire process generally takes about 22.5 hours. However, Huayin offers a diverse range of pyrolysis equipment series. For instance, our Model S continuous pyrolysis equipment provides even higher work efficiency, catering to different production needs. Furthermore, our pyrolysis equipment is not limited to waste tire recycling. It is also capable of processing various other types of waste materials, such as plastics, oil sludge, and biomass. If you`re interested in learning more about our pyrolysis equipment, its capabilities, or pricing, please don`t hesitate to get in touch with us. You`re also warmly invited to visit our factory for a firsthand look at our state - of - the - art equipment and production processes. Huayin eagerly anticipates your inquiry and the opportunity to collaborate with you.
