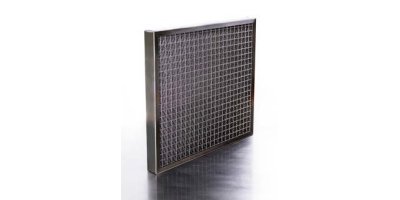

airMet - Metal Filter
Application: Metal filter for grease or oil mist separation. Prefilter for thick particles.
-
Most popular related searches
Type: G2 Metal filter and high oil separation effi...
- Type: G2 Metal filter and high oil separation efficiency.
- Frame: Aluminium EN-AW-6060, ALMG3, stainless steel AISI 304L, acid stainless steel AISI 316L, galvanized.
- Media: Woven metal wire mesh. Can be made in aluminium, galvanized, stainless steel or acid stainless steel material.
- Grating: Aluminium, Hot-dip galvanized expanded metal net or stainless steel grid.
- Recommended final pressure drop: 80-120 Pa.
Advantages
- The filter cells are made from aluminium, galvanised or stainless steel wire woven into a special pattern
- Very large cooling surface without excessive air resistance
- G2 class cleanable dust, sand, flour, paint...etc pre-filter. Grease and oil filter with very high separation efficiency.
- Can be made in all customised sizes.
- Can be cleaned in dishwasher or pressure washer.
