ARC - Model PES - Membrane Filter
From Filter Elements - Membrane Filter

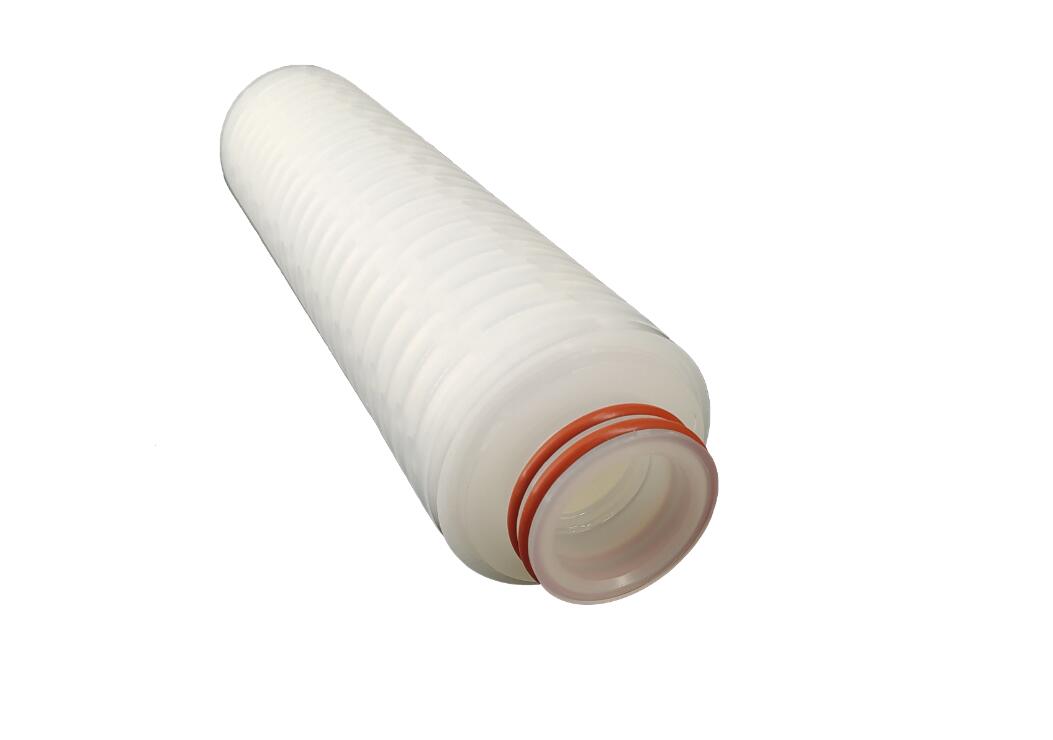

FNB-PS is an absolute membrane pleated filters,the single layer PES membranes provided large filtration area,insure the high flow rate and low pressure drop, it use for Biopharmaceutical,Chemical Pharmacy steriliation filtration.
Materials of Construction
- Outer Cage: Polypropylene
- Inner Cage: Polypropylene
- Endcaps: Polypropylene
- O-ring & Gasket: Silicone, EPDM
- Filter Media: PES Membrane
Features
- Ratings 0.1,0.22 micron
- Absolute Filter Rating
- High surface area
- Long service life
- FDA listed all polypropylene components
Dimension
- OD: 2.7'(70mm)
- Length:10',20',30',40'
Specifications
- Normal Operation Temperature: up to 55°C
- Max Operation Temperature: 85°C?P?1Bar
- Maximum Pressure differential: 4.2bar at 25°C
- Maximum Reverse pressure differential: 2.1 bar at 25°C
- Filtration Area: >0.6m2
- Forward Online Steam Sterilization( 1Bar): 125°C
- Autoclave Steam Sterilization: 121°C
Part No=PS+Micron+Adapters+Length+O-ring
- Part No=PS+Micron+Adapters+Length+O-ring
- EG: A 40 inch 0.2um filters with 226/Fin adapters and Viton O-ring
- The Part NO:PS020F40V
