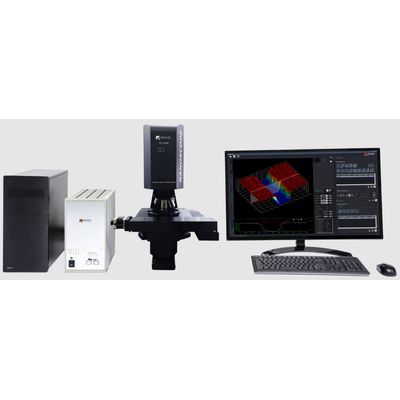

Model NS-3600 -Accurate Optical 3D Measurement
NS-3600 is a high-speed confocal laser scanning microscope (CLSM) for precise and reliable 3-dimensional (3D) measurement, especially designed for the laboratory use performance. It provides three-dimensional descriptions of target objects from a series of optically sectioned images using a very straightforward algorithm, with which the cross-sectional image is directly converted to the 3D profile data. This unique raw cross-sectional image, which is intuitively interpretable, makes the surface profile data definitely superior to that from the other optical technologies
Most popular related searches
3D measurement
confocal laser scanning microscopy
laser scanning microscopy
optical monitoring
laser scanning
surface inspection
surface profiler
scanning microscopy
research tool
sample preparation
- High resolution nondestructive optical 3D measurement
- Real time confocal imaging
- Various optical zoom
- Simultaneous bright field and confocal imaging
- Automatic gain search with fine auto focus
- Inclination compensation
- Easy analysis mode
- Precise and reliable high-speed height measurement
- Inspection of features through semi-transparent substrate
- No sample preparation
- Image stitching for wide range inspection
NS-3600 is a promising solution for the measurement of height, width, angle, area, and volume of micro and submicro structures such as
- Semiconductor : IC pattern, bump height, wire loop height, defect inspection, CMP process
- FPD product : Touch panel screen inspection, ITO pattern, LCD column spacer height
- MEMS device : 3D profile of structure, surface roughness, MEMS pattern
- Glass surfaces : Thin film solar cell, solar cell texture, laser pattern
- Material researches : Tooling surface inspection, roughness, crack analysis
