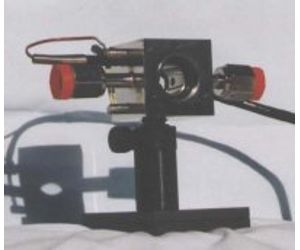

Scout-EN Gas Cell for Short Path



Monitoring of air pollutants. Toxic and corrosive gases. Process stream measurements. Vacuum and high pressure environments. Batch or flow samples. Concentrations of pph to ppm.

  • Nickel plated stainless steel 10-cm gas cell for toxic and corrosive gas analyses; heated and unheated versions.
  • 28 ml volume for 10-cm pathlength
  • 2, 5, 10, 15, 20 cm pathlengths available
  • 316L stainless steel body with nickel plating for durability, high pressure loadings, wide chemical compatibility, simplified cleaning and effective heating
  • Viton, or Kalrez O-rings for chemical resistance and temperature considerations
  • AgBr, KBr, CaF2, ZnSe, quartz, or sapphire window materials for UV-VIS and NIR applications
  • Integral stainless steel VCR fittings
  • Evacuable and pressurizable: 10-4 Torr to 150 psig
  • Heatable to 300° C with heating mantle, tape, or dual bands
  • Optional temperature controller
  • Easy adaptation to Mattson, Perkin-Elmer, Varian, Nicolet, Bomem and Bruker spectrometers

  • 38B100 EN Scout 10-cm gas cell, Viton O-rings, KBr windows
  • 38B200 EN Scout 10-cm heated cell, Kalrez O-rings, KBr windows, temp. controller.
  • 25B600W Pacesetter temperature controller (110v)
