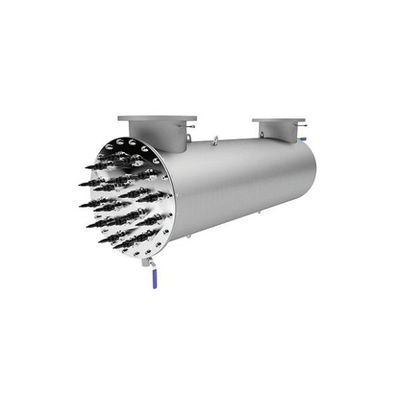

GWT - Model I-Series - Ultraviolet (UV) Water Disinfection Systems
From Others
Standard Features:316 Stainless Steel Electro-polished & Passivated UV Chamber Construction. UV Lamp Status Indicator. Fan Cool Feature. Simple Dual Compression Seals. UV Sensor Port and Drain Port. UV System Run Time Meter. UV Resistant O-Rings and Gaskets. High Output UV Lamps. System capable of using 185nM or 254nM UV Lamps. Horizontal or Vertical mountable. Remote power enclosure. Removable Flanged Heads. Low Power Usage.
Optional Features
- Automatic Wiper System
- Sanitary System Connections
- UV Monitor
- 4-20mA dry contact for UV Monitor relay to PLC controls
- Custom Application Design
Performance
- System provides in excess of 30,000 mw/Sec/cm2 dosage – 254nm UV spectrum standard
- High Output UV Lamps rated for over 12,0000 hours of continuous usage
- Operating Pressure Rated at 125 PSI
- System Engineered Pressure at 150 PSI
- Water Pressure Drop At Rated Flow Rate Is Less Than 1 PSI
- Innovative Chamber Design to maximize inactivation of contaminants
- Capable of inactivating 99.9% of microbiological organisms
Applications
- Pre or Post Reverse Osmosis Treatment
- Storage Tank Sterilization
- Pre-Treatment before Ultrafiltration systems
- Recirculating Loop Systems
- Ozone Destruction
- TOC (Total Organic Carbon) Reduction
Industries
Pharmaceuticals, Electronics, Laboratories, Universities, Kidney dialysis clinics, Hospitals, Food industries, Dairy processing, Cosmetics industry, Medical clinics, Communities/Municipalities, Oil/Gas, Petrochemical, Wastewater Effluent Treatment Plants.

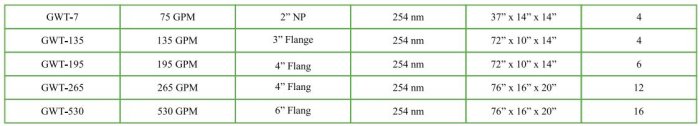

Technical Data
