ADVANCEES - Desalination Application - Custom skid-mounted water purification equipments for desalination industry - Water and Wastewater

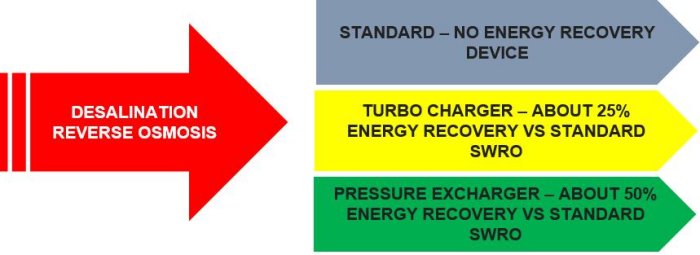

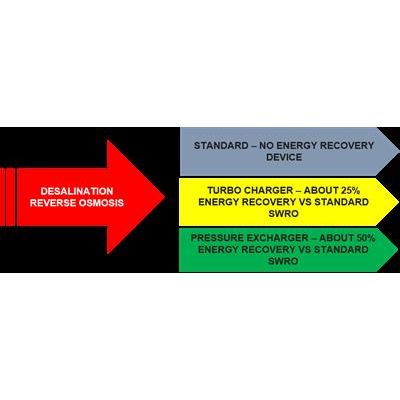

RO desalination technology was initially developed in the late 1950s, and has now evolved into the leading desalination technology globally. There are many different processes used in RO desalination, and a variety of factors come into play when selecting the appropriate solution for each situation – the quality of the source water, the desired quantity and quality of the water produced, pretreatment, energy requirements and disposal of concentrate. At Advanced Equipment and Services we focus on desalination technology by Reverse Osmosis using different energy recovery devices, options and ancillary systems to fulfill customer’s particular needs.
-
Most popular related searches
Solution
In general these are the main three types of desalination systems we build.
Operating Parameters
- TDS: 17,000-45,000 mg/l (as NaCl)
- SDI15: < 3.0
- Temperture: 25 to 35ºC (77 to 95°F)
- Recovery: 40 to 45%
- Nominal Rejection: >98%
- Incoming Power: 480/380Hz 60/50Hz
- Power Consumption: 7.8-14.0 KWHr/KGal
Our Solution
Typically we recommend the following steps:
Note: Required 3bar (45psi) minimum customer suppl...
Note: Required 3bar (45psi) minimum customer supplied pressure to high pressure RO Feed Pump. Temperatures and high salinities will reduce system productivity.
Complete flowchart for arsenic removal below showing the ADVANCEES systems. This flowchart vary based on raw water quality and customer’s requirement. Many options and combinations are possible, the best solution needs to accommodate the minimum life cycle cost such as low operating cost, low maintenance, easy to operate and monitor.
