High performance separation system for silicones industry - Oil, Gas & Refineries

Silicones are inert, synthetic compounds with a variety of forms and uses. Typically heat-resistant and rubber-like, they are used in sealants, adhesives, lubricants, medical applications, cookware, and insulation. Silicones are polymers that include silicon together with carbon, hydrogen, oxygen, and sometimes other chemical elements. Some common forms include silicone oil, silicone grease, silicone rubber, and silicone resin.

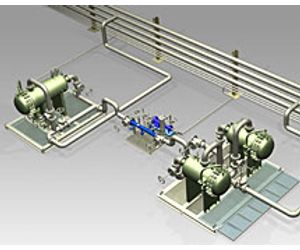

Pentair Porous Media’s POLAREX technology provides chemical manufacturers, refiners and gas processors dramatically improved separation of entrained and dissolved contaminants relative to that achievable through implementation of conventional water wash or solvent scrubbing towers. Conventional approaches to washing or scrubbing are often limited by contact efficiency and subsequent separation efficiency, resulting in limited performance and large capital investments. The POLAREX platform was developed utilizing our advanced micro and nano-fiber technology to create a single stage, highefficiency, structured contactor / separator.

The patented POLAREX technology may be applied to the extraction of soluble components from either liquid or gas process streams. The POLAREX technology has application to both contaminant removal (e.g. - caustic, dissolved acids, salts, acid gases or reaction by-products) as well as recovery of valuable products or solvents (e.g. – recover soluble amines from treated LPG) for as little as 20% of the capital associated with a conventional wash system.

Applied to batch chemical processes, the POLAREX technology increases process speed and operational flexibility. Traditional approaches to neutralization or product washing require a lengthy neutralization or wash step followed by decanting and transfer. Not only do these steps slow reactor turn over, they also frequently result in carry over of salts and impurities due to the limited separation effectiveness of decanting, particularly with emulsified product / water mixtures. The POLAREX technology allows neutralization or washing to proceed on-line during product transfer, allowing the wash / decant steps to be eliminated entirely.

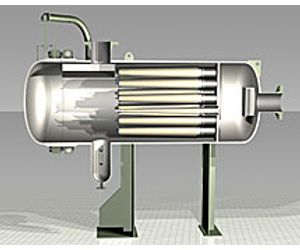

LIQUISEP technology was developed to address the inherent deficiencies of conventional coalescers, making it possible to remove essentially all immiscible water dispersions from hydrocarbon process streams. The LIQUISEP technology overcomes the limitations of conventional separators, vane pack coalescers, wire mesh coalescers and even “high efficiency” mesh pads and filter separators, achieving superior separations under demanding conditions.

LIQUISEP technology makes use of proprietary LIQUIFORM™ media and our patented APEX element design to intercept entrained droplets of even sub-micron geometries and effectively remove them from the process. The high surface energy LIQUIFORM media effectively disrupts the stabilized water droplets, allowing for efficient capture. Additionally, the fiber geometries are specifically designed to promote accumulation and removal of free water from the process stream. The APEX element design works in concert with the media technology promoting uniform fluid flow, while minimizing the potential for turbulence and high fluid velocities which might interfere with water removal from the process stream.

LIQUISEP technology protects critical assets from water contamination and the salts, acids and bases which it may contain. Application of the LIQUISEP technology allows optimized performance of downstream treaters, salt beds, exchangers and reactors while assuring the elimination of haze from finished products.


ProcessOR provides high performance solid-liquid separation. Solid contaminants range from sub-micron particulates as small as viruses to particles several hundred microns in size. The liquids range from aqueous to hydrocarbon systems with viscosities up to 60,000 cP. Pentair Porous Media’s sold-liquid technolgies have been applied in the oil and gas, refinery, chemical, petrochemical and power industries.

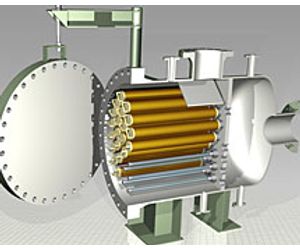

ProcessOR's standard elements are cored, however, you may upgrade to our COMPAX coreless element technology. The COMPAX coreless element flows from the outside-to-the-inside. This element is offered with an extended surface area media configuration utilizing our proprietary NexCel media. The media provides robust performance in glycol and aqueous service as well as hydrocarbon applications. The COMPAX coreless element designs currently being used by a large number of gas plants and hydrocarbon processes due to the superior operating economics and ergonomic advantages.
