Operational modal analysis software solution for direct data acquisition control sector - Monitoring and Testing

General features are:

• Seamless integration with all other tasks in ARTeMIS Modal.
• Direct streaming of measurements to ARTeMIS Modal test setups.
• View acquired time series real-time.
• On-the-fly calculation of auto spectral densities and singular value decomposition (SVD) of spectral densities of user-selectable channels.
• Multiple recording modes: Manual start/stop, predefined interval of time, triggered start, continuous recording with optional ring-buffer.
• Supports IEPE sensors with or without TEDS.
• Works with all versions of ARTeMIS Modal from release 5.1.

Currently supported hardware platforms are shown below.

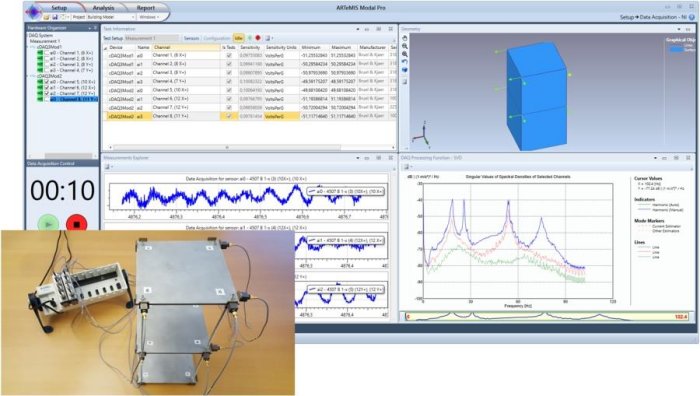

ARTeMIS Modal communicates with the National Instruments API called NI-DAQmx, and all modules handled by this API can be used in ARTeMIS Modal. The below example makes use of two 24-bit NI-9234 units each with 4 channels. As sensors eight B&K 4508b (100 mV/g) accelerometers have been used.

Supported Hardware

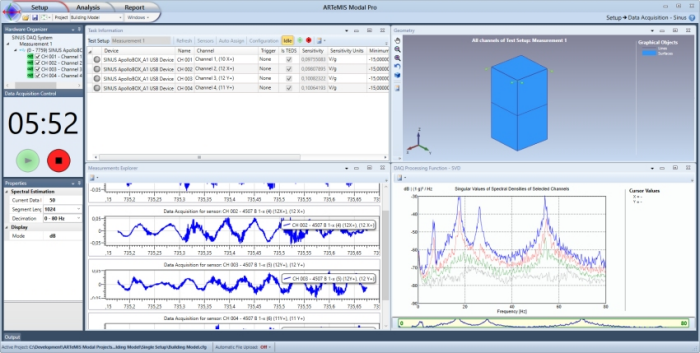

ARTeMIS Modal currently supports the following hardware from SINUS Messtechnik:

• Apollo Box, 2–4 Channels
• Apollo Box light, 2–16 Channels
• Soundbook, 2–8 Channels (use expander for additional channels)
• Apollo PCIe, 2–16 Channels per card
• Tornado, 16–24 Channels
• Typhoon, 48–192 Channels
