Aromatic hydrocarbons benzene, toluene, ethylbenzene, and xylene are often referred to as BTEX and are used in a multitude of products in the petrochemical, agrochemical, and pharmaceutical industries. These aromatic hydrocarbons are dangerous compounds that can cause adverse health effects and even cancer. Monitoring methods need to be rapid and reliable. CST’s BTEX Analyzer continuously and accurately measures the presence of aromatics in hydrocarbon solvents using UV spectroscopy.

Most popular related searches

sample handling system

wastewater processing

interface detection

sample handling

xenon light source

BTEX monitoring

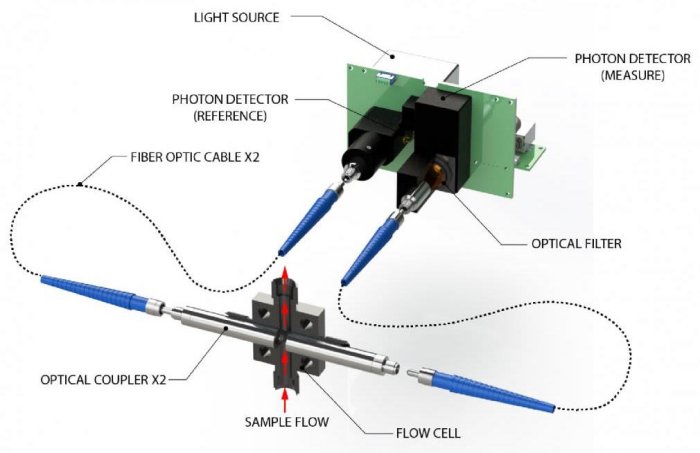

Measurement Principle: UV Absorbance
Range/Repeatability: BTEX in Liquid
0-10ppm
0-100pm
0-1%
Accuracy: ±1% full scale
Repeatability: ±0.5% full scale
Light Source: Xenon Flash Lamp
Detector: Silicon Photodiode
Display: 3.2″ Capacitive Touch Screen Display
Alarms: Contact Closure (60 VDC, 0.75 A max.)
Analog Output: 4-20 mA, isolated
Analog Loop Resistance: 500 ohms @ 24 VDC
Digital Output: USB-B, RS-485 (Modbus)
Power Consumption: 8.5 watts (max.)
Power Requirements: 24 VDC nominal (12-48 VDC)
Enclosure Material: NEMA4X Anodized Aluminum

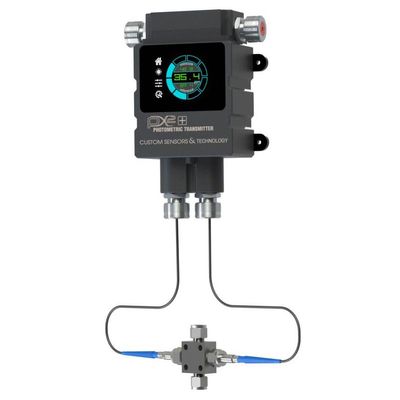

PX2+ Size: 5” H x 5.8” W x 2.8” D
Temperature: 5-50C
Weight: 3.5 lbs. (1.6kg)
Sample Introduction: 3/8″ 316 Stainless Steel Flow Cell
Process Pressure: 2000 psi max
Minimum Flow Rate: 100 ml/min

Hydrocarbon Solvents
Jet Fuel
Interface Detection
Wastewater
