Scrap recycling plants for toner cartridges - Waste and Recycling

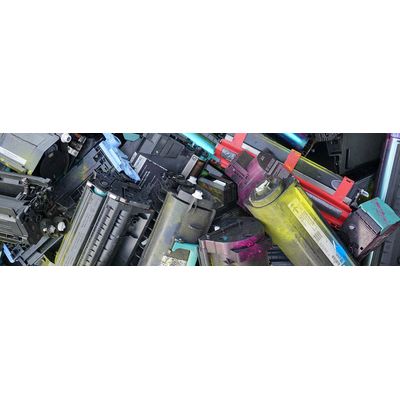

For the recycling of printers, scanners and copiers URT also provides technical solutions and is therefore focusing the toner cartridge recycling. During toner cartridge recycling, cartridges are shredded and separated in toner powder, metal and plastic components. Since the toner powder poses a high risk of explosion, we have developed a multi-stage safety concept to ensure the safe separation of the powder from the remaining fractions. This includes explosion suppression using an inert powder, as well as other measures for secondary and tertiary explosion protection.
According to the EU Directive 2002/96 / EC, toner cartridges are to be taken out of the printers and copying machines before recycling, since the toner dust contained is harmful to health. Above all, however, when cartridges are used commercially, a considerable quantity of cartridges are produced which cannot be refilled due to their design or damage.Toner cartridges are normally destroyed in waste incineration plants. However, they are often used in treatment plants with insufficient explosion protection. For this reason, URT Umwelt- und Recyclingtechnik GmbH Karlstadt decided to develop plant concepts for recycling toner cartridges.
The plant concept described is enabling an automatic removal of the toner powder from the toner cartridge. Every single toner cartridge is put into a feeding device by a co-worker. These cartridges are then fed into a lock system. Thereafter, the cartridges are cracked by a shredding unit, whereupon a sieving machine separates the toner powder from the cartridge components.
Powder dusts are not only harmful to health, but also explosive. Even during the feeding and shredding process of toner cartridges, a mineral inert powder is injected in the system. This inert powder immediately binds with the toner powder and molecules are formed, which are no longer explosive. The sieving machine already mentioned separates the mixture of toner powder and inert powder inside the closed system. The material is then filled up into a collecting container. This effect has been verified and confirmed by an European institute. The method for the suppression of explosions in the treatment of toner cartridges was applied for a patent.The inert material used is extremely cheap and thus reducing the operating costs compared to an explosive suppression with nitrogen. Additionally to the secondary explosion protection, which is the dosing of the inert powder, further explosion protection devices are integrated in the system. Explosion pressure relief devices, a pressure-resistant version and the extinguishing system form the tertiary explosion protection.
