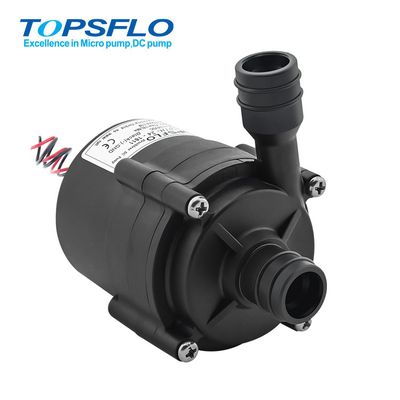

TOPSFLO High Quality TL-C01 12v 24v brushless dc micro mini water pump - Water and Wastewater - Pumps & Pumping
Our TL-C series design features micro centrifugal pumps powered by brushless DC motors. They are designed to be cool, quiet, compact and lightweight. A variety of features, including a seal-less design to prevent leakage, wide range of working voltage, stable performance, long life time, enable the pumps to meet a full spectrum of user needs, with emphasis on ease of installation, operation and maintenance.Max Flow Rate:24L/MIN
Max Static Lift:8M ,11M
Rated Voltage:12V / 24V
Impeller Type:Closed impeller
Motor Type:Three-phase brushless DC motor
Food Grade(Y/N):Y
The centrifugal brushless pumps are designed for general, commercial and industrial applications. Ideal for circulation pump applications. They will pump fresh water, seawater, and other liquids that are compatible with the pumps materials and that are of similar viscosity to water.
1. Liquid transfer general purpose pumping
2. Hot water circulating system pump
3. Electronics Cooling Water Circulation Chiller Systems pump
4. 3D printer cooling water pump
5. Instant electric water heater, electric shower pump
6. Circulating systems for homes
7. Cleaning equipment, purification and water treatment pump
8.Smart toilet boosting pump
9.Boosting applications pump
10.Medical Equipment Water Pump,Gene Sequencer Cooling Pump
11.EV charging pile,supercharger cables cooling
♦ Advanced magnetic driving technology for static-seal,without any leakage forever
♦ Heavy duty work,can sustain continuous work
♦ High efficiency ECM brushless DC motor with long lifetime 30,000hours
♦ 3-phase motor for lower power consumption and lower fever
♦ Durable permanent magnetic rotor/impeller and fine ceramic shaft
♦ Specializing closed-type impeller for lower water loss bring higher efficiency
♦ High precision one-time injection magnetic rotor for stable lower vibration
♦ High temperature materials for liquid temperature 100°C
♦ Low or no maintenance
♦ Food grade materials
♦Imported Japan XYRON PPE material, certificated by WRAS & NSF.
♦ 16000㎡ modern factory with its own physical property rights, ESD anti-static control dust free workshop,100+ sets of professional imported equipment
♦ 4 major professional and precision laboratories that meet the CNAS national laboratory accreditation standards
♦ More than 50 patents in the micro water pump industry, strong research and development strength, and master advanced industry technology
♦ Complete certification, passed CE, ROHS, REACH, WRAS, Food Grade and other certification
