We are a Design, Engineering and Sales Company that Specializes in Dissolved Air Flotation Clarifiers and Other Water Treatment Related Equipment.

Royall DAF conducts laboratory DAF feasibility analysis of process waters, provides on-site pilot feasibility studies, design, manufacturing, and complete installations of a DAF clarifier systems. All labor, parts, and equipment supplied by DAF Corp. are covered by a one-year warranty.

These clarifiers find applications in pulp and paper mills, recycled fiber de-inking, food processing, dairy, dairy manure,algae removal, textile industries, municipalities, before membrane systems, and others. Total suspended solids removal to below 50 ppm of filterable solids and thickened sludge consistency of 2-4% is indicative of the efficient operation of these devices.

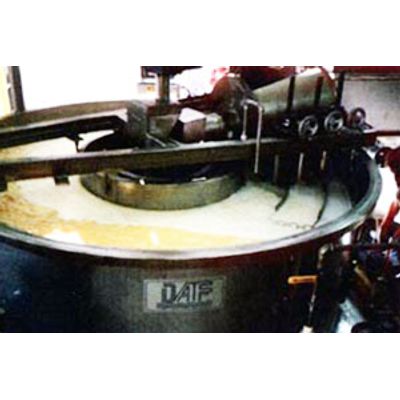

The standard FC Maximizer features an all stainless steel round tank, epoxy painted carbon steel tank bottom supports, side wall stiffeners, heavy duty tank rim, top bridge and catwalks. Units can be fabricated entirely of stainless steel on request. All clarifiers feature a standard sludge cone, clear water separation wall, air mixing tube (AMT), center rotary joint, sludge scoop and top bridge with attached assembly.

Skid-Mounted FC Maximizers are very popular and preassembled with all ancillary piping, valves, controls, and wiring, ready for operation. Skid-mounted dissolved air flotation clarifiers range from 30 g.p.m. (4` diameter) to 450 g.p.m. (15` diameter).

Royall DAF offers two types of dissolved air flotation clarifiers, the FC Maximizer and the RC Uni-Max.

The FC Maximizer clarifier processes raw water flows of 10 gpm. to 11,000 gpm. utilizing the zero velocity concept in a shallow circular tank. Diameters range from 4 ft to 70 ft. RC UniMax clarifiers are rectangular in shape and are available in a range of sizes to process water flows 20 gpm to 1000 gpm.
