Acid Gas Removal Unit
What is acid gas?
Very strictly speaking, an acid gas is any gaseous compound that forms an acidic solution when dissolved in water. While there are many types of acid gases, the most prevalent are carbon dioxide (CO2) and hydrogen sulfide (H2S). These chemicals are commonly found in natural gas deposits but render the gas unusable. They are not toxic when they come into contact with people, they are also corrosive agents in pipes and containers, causing corrosion and sometimes irreparable damage. Needless to say, the management and disposal of these substances are strictly regulated for reasons of public health and environmental protection.
Acid Gas Removal Process
Acid waste gas treatment refers to the use of various technical measures to reduce the amount of acidic solvents or exhaust gas purification to eliminate acidic waste gas pollution. Acidic waste gas pollution sources are widely distributed. In order to prevent pollution, in addition to reducing the amount of acidic solvents to reduce the generation of acidic waste gas Exhaust gas purification is currently a feasible treatment method; common methods include adsorption method, absorption method, combustion method, condensation method, biological method, etc. When selecting purification methods, low-cost and low-consumption A method that can reduce and prevent secondary pollution, try to turn harm into benefit, and fully recycle components and waste heat;
Activated carbon adsorption is used to treat acid waste gas. After the activated carbon is saturated, steam is used to desorb and regenerate it. The exhaust gas contains a certain amount of acid waste gas. Therefore, pretreatment must be carried out before the waste gas enters the activated carbon adsorption device. Otherwise, the waste gas enters the activated carbon adsorption device. It will cause unnecessary trouble and even make the activated carbon invalid. The pretreatment adopts alkali washing spray + secondary wet scrubber + activated carbon adsorption equipment.
Acid gas scrubber

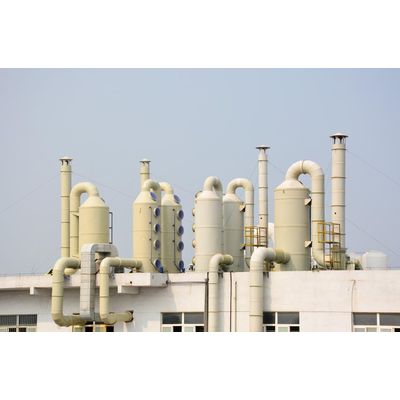

Acid gas scrubber 1 is a spray washing packed tower, and the internal spray heads and packing layers are alternately distributed. The filler has a large specific surface area and is used to increase the contact area between the two fluids. Exhaust gas enters from the bottom, passes through the packing layer and demister, and is discharged from the top. The liquid is pumped to the nozzle to be sprayed out, falls down, and returns to the water tank through the packing layer. Add lye to the circulating water to neutralize the acid mist in the exhaust gas to achieve the purpose of interception. The impurities in the water tank need to be cleaned regularly, and the sewage needs to be discharged regularly. The purpose of setting up the alkali washing tower here is mainly to remove acid mist and some water-soluble substances.
Secondary wet scrubber
It has the same structure as the acid gas scrubber, further removes the particulate matter in the exhaust gas, and at the same time cleans the lye brought out by the front-end equipment.
Activated carbon adsorption equipment
In order to prevent dust and water vapor from entering the activated carbon adsorption device system, to ensure that the air source of the treatment system is clean, free of particles and water mist; the filter frame is made of PP plastic plate with frame and frame, and the filter material is inserted inside. The filter is installed on PP Inside the plastic box, replace it regularly. The filter material adopts honeycomb activated carbon or activated carbon particles, which has the characteristics of large ventilation, small resistance, and large dust holding capacity; the filter section is equipped with a differential pressure gauge (pointer type), and when the internal pressure difference of the equipment exceeds 300-350Pa, it prompts to clean or replace;
Adsorption gas process: the acid waste gas to be treated is drawn out from the air duct and then enters the activated carbon adsorption device. After the gas enters the adsorption bed, the acidic substances in the gas are adsorbed by the activated carbon and attached to the surface of the activated carbon, so that the gas can be purified. The purified gas Then it is exhausted to the atmosphere through the fan.
