Automotive: car manufacturing - Case Study

THE CLIENT`S REQUEST

The Client aims to reduce the environmental impact of the plant, as industrial waste water cannot be discharged into the natural ecosystem and the amount of water consumed must be halved.

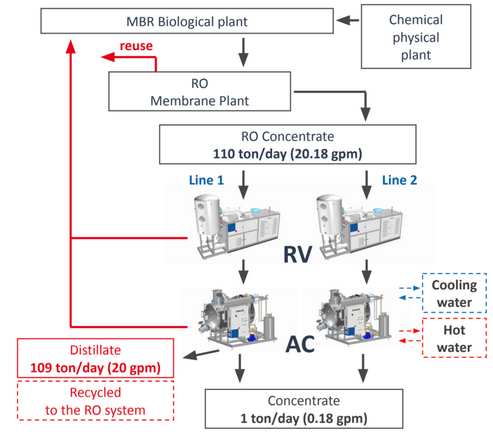

THE SOLUTION

• Evaporation technology: 2x RV F 60

• Construction material: UNS S32750

• Overall dimensions: 2x 18 sqm
• Evaporation technology: 2x AC R 3

• Construction material: UNS S32750

• Overall dimensions: 2x 7 sqm

After the initial purchase of an RV F unit and an AC R unit, the Client chose to double the plant after only two years, confirming their confidence in the reliability of EVALED evaporation technologies.

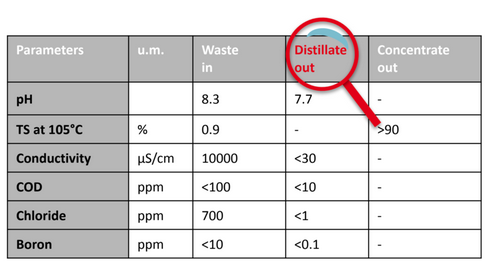

ANALYSIS OF MAIN PARAMETERS

RESULTS

• Separated water: ?99%
• Concentration factor: 110 times
• Recovery of heat from the cogenerator (reducing the environmental footprint)
• 100% water re-use
• ZLD plant
• Water consumption reduced by more than 70 per cent
