Automotive: tyre washing - Case Study
Mar. 1, 2024
THE CLIENT
The Client is a multinational company, world leader in the production and sale of tyres. Worldwide, it counts around seventy plants manufacturing 180 million tyres each year that are sold in 170 countries.
Most popular related searches
make-up water
ion exchange resin
organic residues
wash water
evaporator system
activated carbon
ion exchange
waste disposal
make-up water treatment
process water recycling
THE CLIENT`S REQUEST
The Client`s objective is the treatment of washing water from tyre production, with the aim of obtaining a quality distillate suitable for reuse, and to reduce the volume and cost of waste disposal.

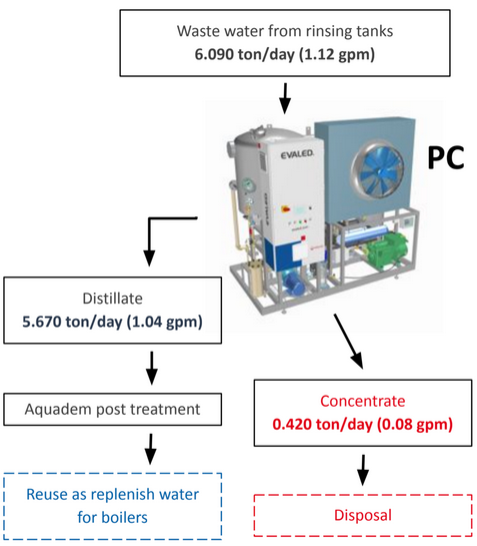

THE SOLUTION
- Evaporation technology: PC F 6
- Construction material: AISI 316
- Overall dimensions: 4.6 sqm

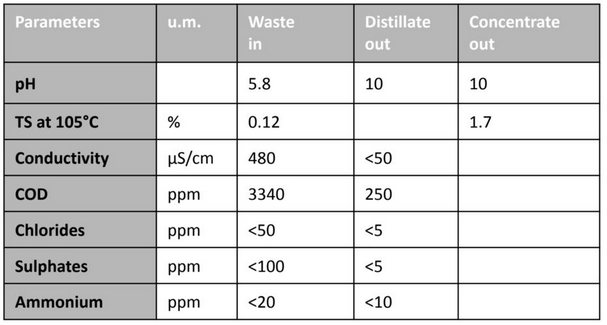

ANALYSIS OF MAIN PARAMETERS
RESULTS
- Reused water: ?97%
- Concentration factor: ?15 times
- reduction of disposal volumes and costs
- re-use of 100% distillate as boiler make-up water (AQUADEM post-treatment consisting of activated carbon for organic residue removal and ion-exchange resins for finishing treatment)
