Designing Safe Soldering Workstations with Proper Fume Extraction

Key Risks in Poorly Designed Soldering Workstations

Direct Fume Inhalation

Without source capture, fumes rise straight toward the operator’s face. This increases breathing discomfort and long-term health risk.

Limited Air Movement

Electronics assembly areas often restrict airflow to protect components. This allows fumes to build up quickly.

Operator Fatigue

Poor air quality leads to eye irritation, throat discomfort, and faster fatigue during shifts.

Essential Elements of a Safe Soldering WorkstationCorrect Workbench Height

The bench height should allow operators to solder without leaning forward. This keeps the breathing zone stable and improves fume capture.

Clear Working Area

Avoid clutter near the soldering point. A clear area allows proper hood placement and smooth airflow.

Proper Lighting

Good lighting reduces operator movement. Less movement keeps the fume extractor positioned correctly.

Role of a Soldering Fume Extractor

Source-Level Capture

A soldering fume extractor captures fumes at the soldering point before they spread. This protects the operator and nearby stations.

Flexible Arm Positioning

Flexible arms allow the hood to stay close to the solder joint without blocking the operator’s hands or view.

Stable Air Quality

Continuous extraction keeps air quality consistent throughout the shift.

A reliable soldering fume extractor manufacturer in Bangalore designs systems that fit compact electronics workstations without affecting productivity.

Correct Placement of the Extraction HoodDistance from the Soldering Point

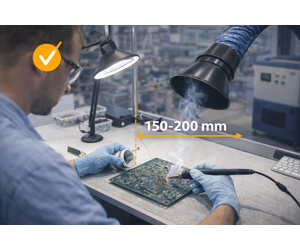

Position the hood 150–200 mm from the soldering point for effective capture.

Angle of Capture

Place the hood slightly to the side or behind the solder joint. This allows fumes to flow naturally into the hood.

Conclusion

Safe soldering workstations require more than a table and a soldering iron. Proper layout, correct posture, and effective fume extraction protect operators from continuous exposure to flux fumes.

A well-positioned soldering fume extractor keeps air clean, improves comfort, and supports consistent assembly quality over long production hours.

Meta Details:

Title: Design a Safe Soldering Stations with Proper Fume Extraction

Description: Learn how to design safe soldering workstations with proper fume extraction to protect operators, improve comfort, and maintain clean indoor air quality.

Keywords: soldering fume extractor, safe soldering workstation design, soldering fumes indoor air quality, soldering fume extractor manufacturer in Bangalore

Alt Text: Soldering workstation with a fume extractor hood positioned near the soldering point to capture flux fumes effectively.

Avoid Blocking Operator Movement

If the hood interferes with work, operators move it away. Proper placement prevents this.
