Dryer Supply Fan for Cement Plant

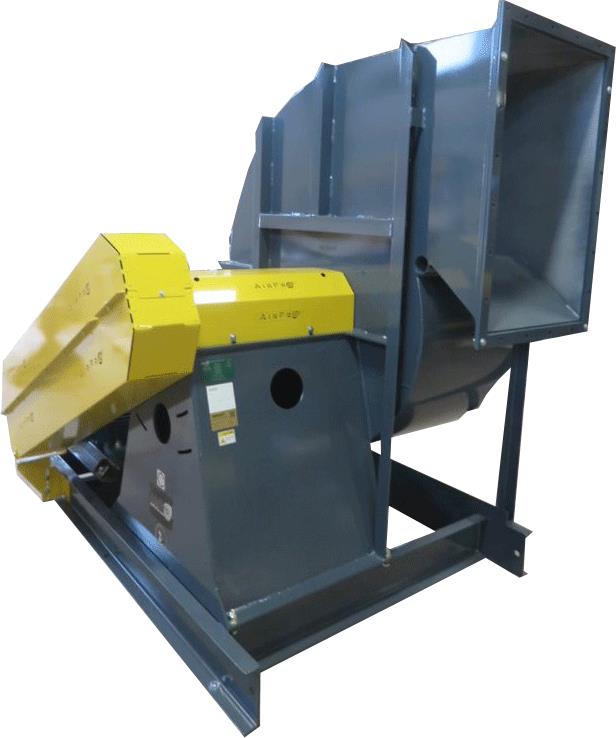

We supplied this radial tipped dryer supply fan for a cement plant application. With a 150 HP motor, an outlet flex connector or expansion joint, and an airflow sensor, the fan accommodates very high airflow.
This induced draft radial tipped fan moves high volumes of air through the rotary dryer delivering high static efficiency while keeping dust and other particulates moving through the wheel to exit the fan.
Highly efficient for processing bulk solids, rotary dryers tumble material in a rotating drum in the presence of drying air from supply fans. Fans circulate the air to control moisture content and temperature.
If you have a similar project, contact an application engineer to discuss it in more detail.
Performance: 26,000 acfm airflow @ 20” w.g. static pressure @ 0.068 lb/ft^3 inlet air density
- Product Type: RTHS (radial tipped)
- Size: 330 (33” diameter wheel)
- Class: 4
- Arrangement: 1 (belt drive with unitary base)
- Horsepower: 150HP
- Max Design Temperature: 150°F
