Hammer Crusher Wear Parts: Maintenance and Replacement Guide

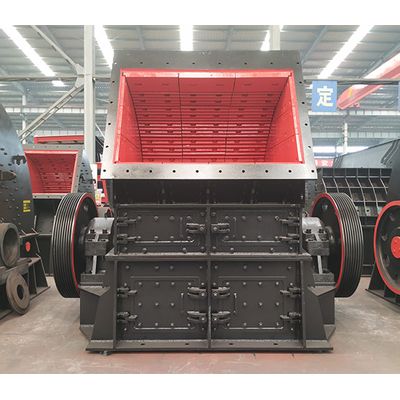

Hammer crushers are widely used in mining, cement production, construction waste recycling, coal handling and aggregate processing. They feature simple structure, high crushing efficiency and convenient operation, making them popular in medium and small‑scale crushing production lines.

During operation, hammer crusher wear parts bear continuous impact, friction and extrusion from materials. The quality and service life of these parts directly affect crushing performance, production stability and operating costs.
Understanding hammer crusher wear parts, their functions and maintenance methods helps operators reduce downtime, extend equipment life and lower production expenses. This article introduces the main types of wear parts, factors affecting their service life, daily maintenance and proper replacement practices.

Main Types of Hammer Crusher Wear Parts
Hammer crusher wear parts include several key components that directly contact materials. Each part has a unique function and requires regular inspection.

Hammers
Hammers are the core crushing components of a hammer crusher. They rotate at high speed to strike and crush materials into qualified particles.
As the most frequently replaced part, hammers suffer the most severe wear and impact. They are usually made of high‑manganese steel, high‑chromium alloy or other wear‑resistant materials

Liner Plates
Liner plates are installed on the inner wall of the crusher casing. They protect the machine body from wear and help reflect materials back to the crushing area for secondary crushing.
Different material hardness and working conditions require different types of liner plates with high wear resistance.

Grate Bars or Screen Plates
Grate bars, also called screen plates, control the size of final products. Materials that meet the size requirement pass through the gaps, while oversized materials stay for further crushing.
These parts are easy to wear or block and need regular cleaning and replacement.

Impact Plates
Impact plates are fixed inside the crushing chamber to enhance the crushing effect. Materials hit the impact plates after being struck by hammers, improving crushing efficiency and particle shape.
They are typical hammer crusher wear parts with high resistance to impact and abrasion.

Rotor Disk
The rotor disk carries and fixes the hammers. High‑speed rotation and material impact cause wear on both sides of the disk.
Severe wear may lead to unbalanced rotation, so regular inspection is necessary.

Factors Affecting the Lifespan of Hammer Crusher Wear Parts
The service life of hammer crusher wear parts is influenced by multiple factors.
Material hardness and abrasiveness are the most important factors. Harder and sharper materials accelerate wear speed.
Uneven feeding, overloading and excessive feeding size increase impact force and shorten part life.
Improper installation, unbalanced rotor and lack of maintenance also lead to premature wear.
Using low‑quality wear parts will significantly reduce their service life and affect overall crushing performance.

Maintenance Tips for Hammer Crusher Wear Parts
Proper maintenance can effectively extend the service life of hammer crusher wear parts.
Ensure uniform and moderate feeding to avoid sudden impact or overloading.
Check the wear condition of hammers, liner plates and grate bars regularly.
Clean the grate bars frequently to prevent material blockage and ensure smooth discharging.
Replace severely worn parts in time to avoid damage to other components.
Lubricate bearings and transmission parts on schedule to reduce friction and vibration.
Use high‑quality, wear‑resistant hammer crusher wear parts that match the equipment model.

When to Replace Hammer Crusher Wear Parts
Timely replacement of worn parts ensures stable operation and high crushing efficiency.
Replace hammers when their thickness is reduced to the safety limit.
Replace liner plates and impact plates when cracks, deformation or excessive thinning appear.
Replace grate bars when the gaps are deformed or blocked seriously.
If the crusher shows abnormal vibration, noise, reduced output or uneven product size, check and replace worn parts immediately.

Conclusion
Hammer crusher wear parts are key to the stable and efficient operation of hammer crushers.
Core parts including hammers, liner plates, impact plates and grate bars determine crushing effect and equipment reliability.
By choosing high‑quality wear parts, maintaining reasonable feeding, performing regular inspection and timely replacement, users can greatly extend the service life of these parts.
Reasonable management of hammer crusher wear parts helps reduce production costs, improve operational efficiency and ensure continuous and stable crushing production.
