Infiltration Tank - Warwick Commercial Development, WA, Australia - Case Study

• Project Location: Warwick Commercial Development, WA, Australia

• Project Details: Infiltration Tank under Car Park

• Completion Date: October 1996

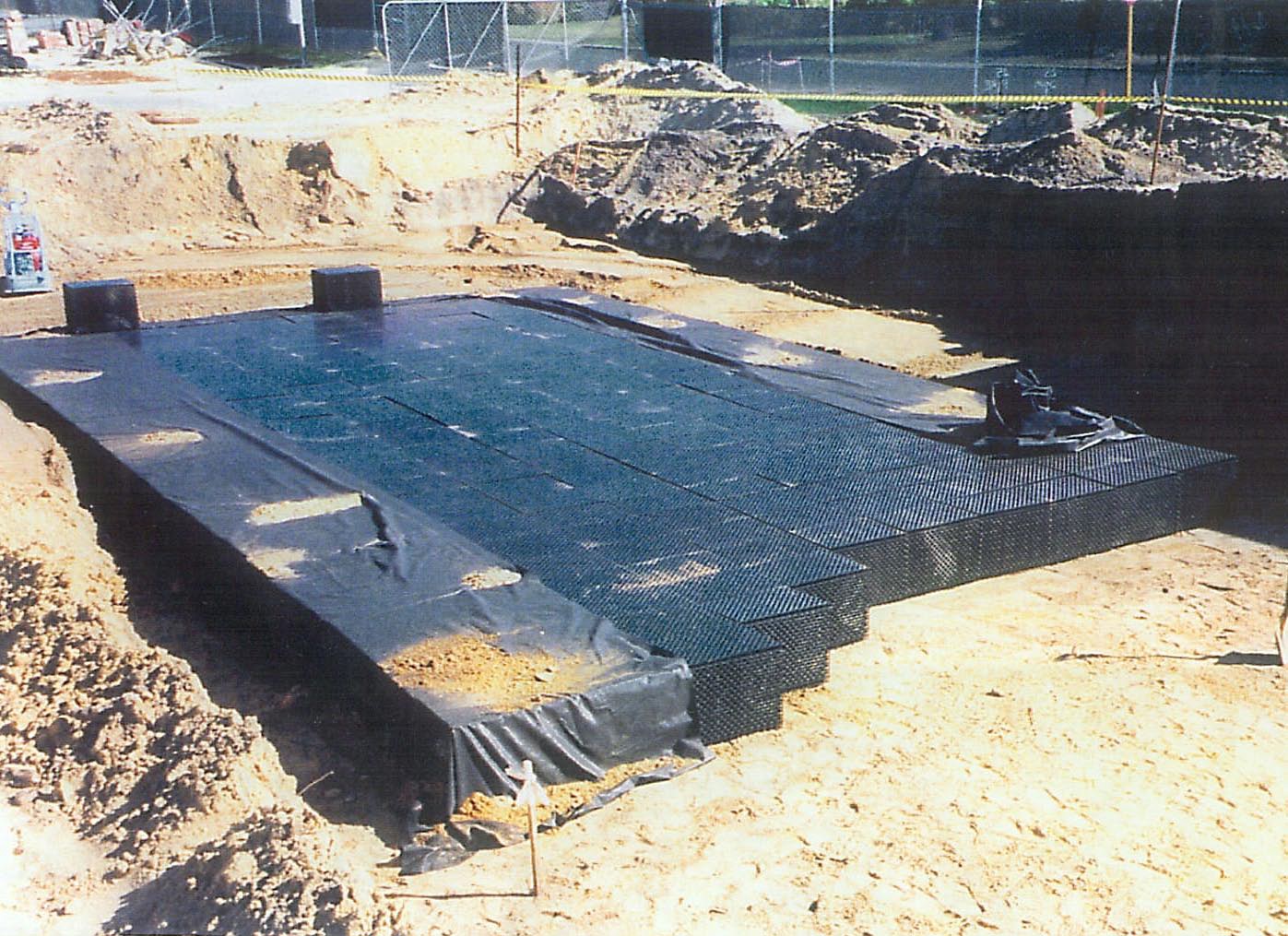

Atlantis Percolation Tank Modules. 700 m3 over 3.5 hectare site.

The Problem
Tight site boundaries making traditional soakwell installation/volume impractical. Local Authority (Wanneroo Shire) required all stormwater retained on respective sites. All soakwells installed needed to be structural under carparks.

The Solution
High percolation rate of Atlantis Cell enables Hydraulic Engineer to design more efficient method and subsequent volume reduction of percolation tanks. High crush strength 8.12 tonnes per m2 of Atlantis percolation tank modules allowed for under carpark locations with 600 mm of compacted sand fill.
