Ink production - Case Study
Mar. 1, 2024
THE CLIENT
The Client is an American supplier that globally manufactures printers, printer accessories, printing and photo products and services for private clients and companies.
Most popular related searches
zero liquid discharge
evaporator system
zero discharge
waste reduction
process waste
process water
water recycling
THE CLIENT`S REQUEST
The Client needs to:
- obtain authorisation to build a new production centre in Mexico (NAFTA) with a ZLD plant.
- reduce the high disposal costs as much as possible.

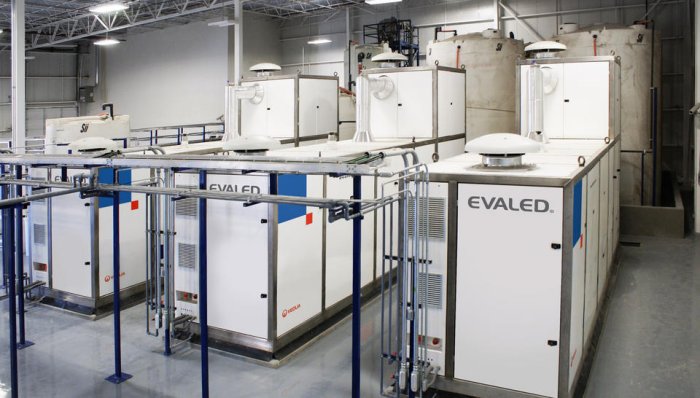

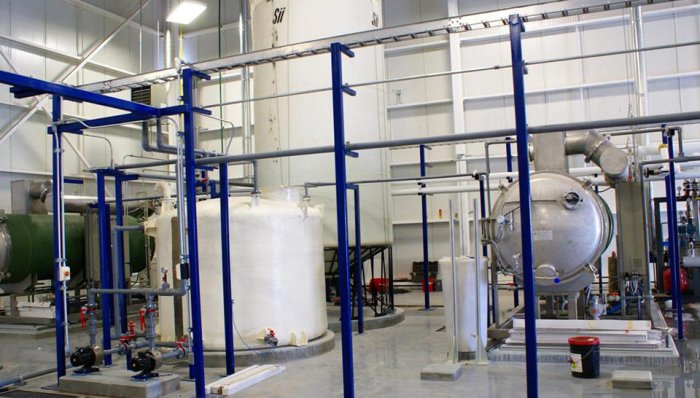

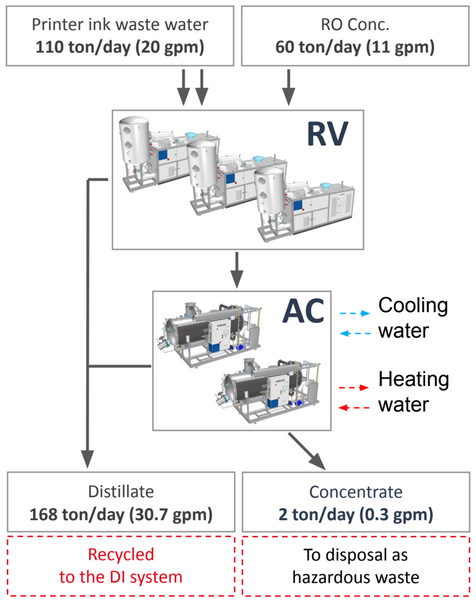

THE SOLUTION
- Evaporation technology: 3x RV F 60
- Construction material: UNS S32750
- Overall dimensions: 18 sqm
- Evaporation technology: 2x AC R 6
- Construction material: UNS S32750
- Overall dimensions: 2x 11 sqm

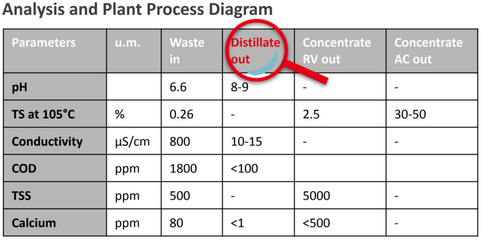

ANALYSIS OF MAIN PARAMETERS
RESULTS
- Waste water reduction: ∼98.8%
- Concentration factor: ∼85 times
- Zero Liquid Discharge (ZLD)
- 98% reduction in disposal costs
- Reuse of water in the production process
