Javelin Micro 1.75 inch Borehole Logging Tool Successfully Field Tested in Moab UT
May. 27, 2022
Courtesy ofVista Clara, Inc
Vista Clara has successfully completed field testing of Javelin Micro. With a 1.75 inch (44mm) diameter, Javelin Micro is the world’s first wireline NMR logging tool capable of logging 2 inch ID PVC boreholes.

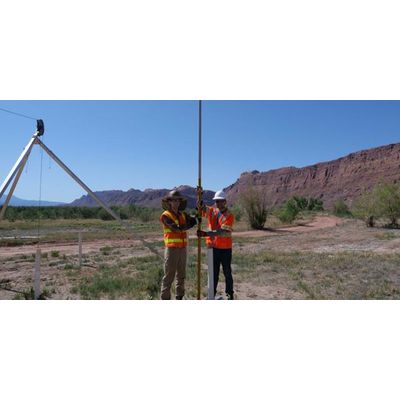

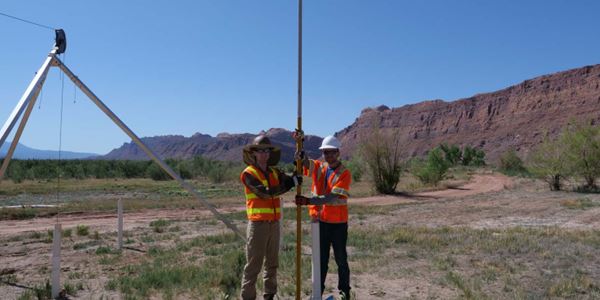

Field testing was conducted at the Moab Uranium Mill Tailings Remedial Action (UMTRA) site in Moab, UT, in conjunction with a project that used the Javelin Slim 2.38 inch logging tool.

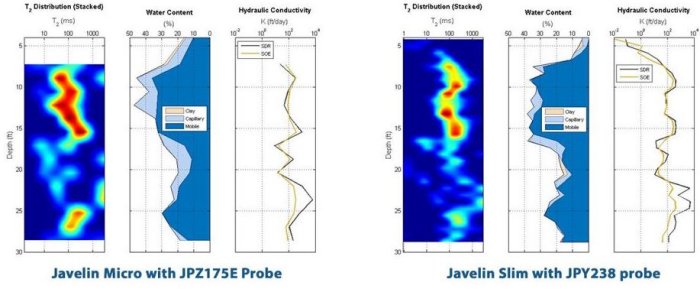

Below is a comparison of data from Javelin Micro and Javelin Slim, which confirms efficacy of the new smaller diameter tool.
Most popular related searches
borehole logging system
laboratory data analysis
borehole
borehole logging
monitoring well
laboratory data
NMR
wireline logging
borehole testing
NMR system

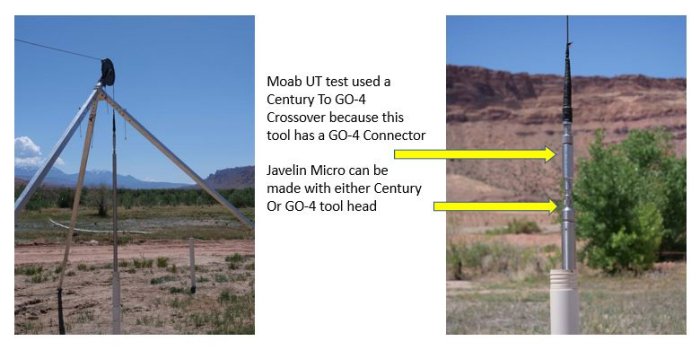

- Runs from Javelin wireline NMR surface unit, and 4-conductor wireline with GO-4 or Century logging head.
- Supported by standard Javelin Pro Software for in-field and in-lab data analysis
- Comes standard with 2 frequency detection, with 2 simultaneous diameters of investigation of 9 inches and 10 inches. This is important for logging 2” PVC monitoring wells that are often drilled with 7 or 8 inch drilling diameters.
- Tuning frequencies can be increased for smaller diameters of investigation and higher SNR/faster logging speed if desired.
