Mechanics: waste water from aluminium die-casting - Case Study

Mar. 1, 2024

Courtesy ofEVALED - Evaporator - Veolia Water Technologies Italia Spa

THE CLIENT

The Client is a manufacturer of die-cast aluminium and zinc components for the automotive industry. The production range includes parts ranging in weight from 0.005 to 20 kg.

Most popular related searches

zero liquid discharge

process water recycling

waste oil containment

THE CLIENT`S REQUEST

The Client aims to reduce the volume of waste water from the production process and the RELEVANT high disposal costs and to reuse water in the production cycle. Waste water mainly contains oils and glycol.

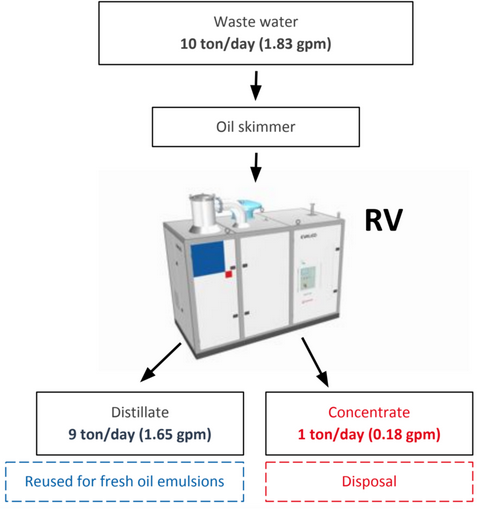

THE SOLUTION

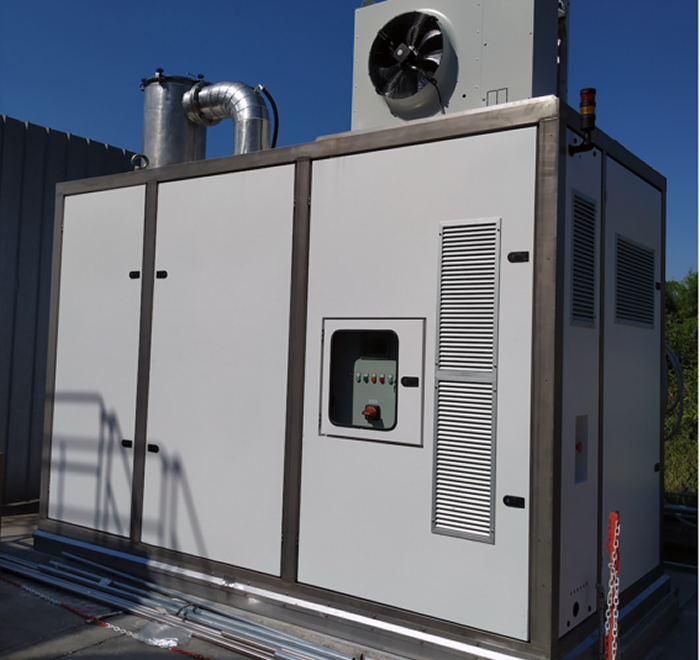

Evaporation technology: RV F 15
Construction material: AISI 316
Overall dimensions: 10.5 sqm

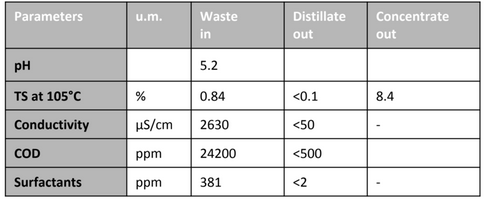

ANALYSIS OF MAIN PARAMETERS

RESULTS

Reused water: ?90%
Concentration factor: 10 times
Reuse of distillate
Disposal cost reduction
ZLD (zero liquid discharge)
Return on investment <3 years
