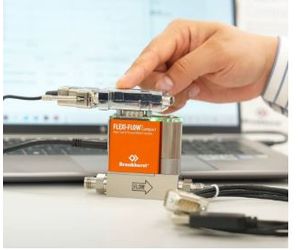

Meet the new smart FLEXI-FLOW- Compact Smart Thermal mass flow meter — Now Available
Measuring gas flow shouldn`t be complicated. That`s why we`ve developed the FLEXI-FLOW™ Compact series. A range of smart thermal mass flow meters designed to make your work easier, faster, and more accurate. Six models are now available in our web shop with shipment within 2 business days when in stock. Whether you`re running experiments in a university lab, developing fuel cells, or managing biotech processes, these meters deliver the flexibility and precision you need.
Why Choose FLEXI-FLOW Compact Mass Flow Meters?
Traditional mass flow meters often require separate instruments for different gases or flow ranges. The FLEXI-FLOW Compact changes that. Here`s what makes this smart flow meter series stand out:
Multi-Gas Flexibility Without RecalibrationThermal mass flow meter Bioreactor
Select your process gas. With 22 on-board gases, it is very easy to switch to another gas or mixture. Additionally, the on-board gas database is used for real-time corrections on the flow measurement based on the actual process conditions (temperature).
Switch between gases instantly with mobile or desktop app without sending your instrument back for recalibration.
Common gasses are pre-installed like Air, Nitrogen, Oxygen, Hydrogen, Argon, Helium, Methane, Carbon Dioxide
High Accuracy Across Wide Dynamic Ranges
Whether you need to measure 5 mln/min or 500 ln/min, FLEXI-FLOW maintains exceptional accuracy. The innovative through-chip sensor combined with bypass technology ensures stable, repeatable measurements even when temperature or process conditions fluctuate.
With a turndown ratio of 1:50 and accuracy of ±1.5% Rd plus ±0.5% FS (At calibration conditions) this a verstalie instrument for your application.
Ultra-Fast Response Times
Due to the ultra-thin sensor tube, the sensor reacts instantaneously to changes of the gas flow, resulting in very fast flow measurement.
Free Configuration Software and self diagnosis
Effortlessly set up and monitor your instrument using our free mobile app or desktop software FlowSuite. Access real-time data and adjust key parameters (Actual and totalized flow etc.)
The instrument shows the status of self-monitoring and diagnosis by means of a coloured LED. This signal can be easily recognized by the operator.
https://www.microsoft.com/store/productId/9PCDF686TK2W?ocid=pdpshare
Built for Labs, R&D, and Industry
Whether you’re working in reactive sputtering, analytical systems, fuel cell development, or general lab applications, FLEXI-FLOW delivers.
- Biotechnology : Multi-gas functionality and multiple flow ranges in one device, many communication options.
- Gas Mixing: High accuracy and repeatability, fast chip sensor technology and easy of use.
- Leak Testing Flow measurement, large dynamic range.
- Analytics : Ideal for analytical benchtop devices due to compact size, with a wide selection of gases on board.
- Research : Measure multiple parameters without having to change the instrument.
Do you need the FLEXI-FLOW in a Controller?
Please contact your local distributor for advice and a quote.
More possibilities are available for the FLEXI-FLOW like:
- More parameters: Flow, temperature, upstream pressure, downstream pressure
- More fieldbuses: Profinet (EtherNet based)
- Better accuracy of 0,8%Rd plus ±0,2%FS (Rangeability up to 1:500) or 0,5%Rd plus ±0,1%FS (Rangeability up to 1:1000)
- Controller with Shut-off function or downported controller of meter
- Body material of parts SS316L incl. Ra
- External display on the instrument
See for more information on the product page of the FLEXI-FLOW at Bronkhorst: All-in-one gas flow meter and controller in compact form
Explaining our FLEXI-FLOW Compact, Mass Flow Control #Redefined
