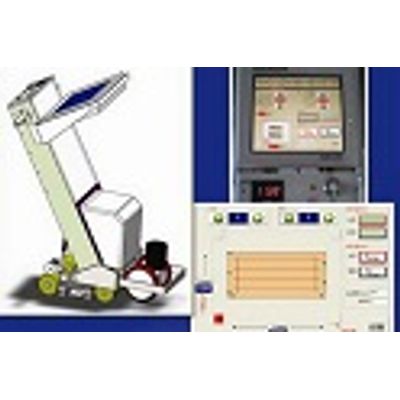

MFL101 Tank Floor MFL Scanner

Technical Characteristics of MFL101 Tank Floor MFL Scanner



Unique full modular structure, from the main body of the computer mechanism the handle of MFL101 Tank Floor MFL Scanner can be quickly folded, disassembled. It is easy to transport and access manholes. With humanized operation design, the height of armrest and adjustable angle, suitable for different operators. Precise signal conditioning circuit. The four-layer PCB with mixed power excellent performance. data word signal processing system, supercomputing power, advanced evaluation algorithm.



High-performance touch industrial tablet. The operation is very convenient does not require a keyboard and mouse. Unique probe design. It can pick up the magnetic flux leakage signal to overcome the unwanted signal caused by the eddy current effect. The number of physical channels is up to 32. High-performance lithium battery pack, which is at least 50% lighter than the equivalent capacity lead-acid battery Software design that can be operated efficiently.



All scan parameter settings graphical, intuitive, and easy to use, dramatically increasing the speed of operation and avoiding errors. The magnetization is quickly adjustable. By adjusting the ground clearance the magnetic pole, the magnetization of the detection target plate can be quickly changed to meet the requirements of detecting the thickness and minimize the gravity of the instrument and the bottom plate. This design allows the instrument to adapt to a wide range of floor thicknesses and reduce operator effort, increasing battery life.



Different degrees of corrosion are represented by non-color blocks. Online analysis of corrosion degree and position, position coordinates can be displayed in a table or on a scan.



MFL101 Tank Floor Scanner Performance Parameters Host:



Industrial tablet computer interface:
Chinese Working principle: Magnetic flux leakage method:
NdFeB permanent magnet Channel number: 32
Scan width: 260mm
Drive mode: DC brushless motor, worm gear reducer, The motor can be raised.
Convert manual and electric drives at any time.

Detection speed: 0 m / s~0.7m /s step-less adjustable
Detection thickness: 8-20mm Penetration coating: non-magnetic
Penetration thickness: <4mm
Sensitivity: can be set (8-12mm thick 20 % material loss of the bottom plate, 40% material loss of the 12-20mm thick bottom plate
Data storage: local hard disk storage, USB disk dumping
Real-time analysis: Yes
Offline software
Battery specification: 14V40AH
