Courtesy of Jiangsu Jiuwu Hi-tech Co
Standard discharge, reclaimed water reuse and zero effluent discharge
1. As for paper mill wastewater treatment, pulping wastewater is the most difficult wastewater to be treated in the papermaking industry. The organic pollutants and inorganic salts are high in content, complex in composition, high in hardness, high in costs. The technical staff of JIUWU work with experts from the Institute of Membrane Science and Technology of Nanjing Tech University and develop successfully membrane technology as the core of zero effluent discharge process or zld (zero liquid discharge).

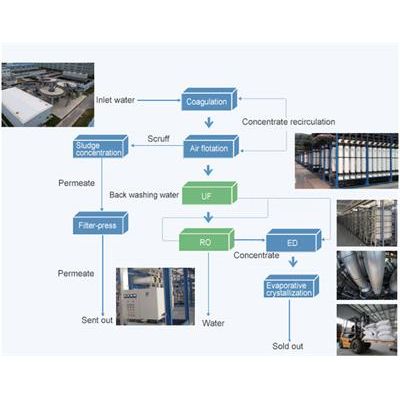

2. Using the process of pretreatment, membrane integration, evaporation crystallization and other related processes turns waste into valuable and achieves the sewage recycle. The project forms a major technological breakthrough in the field of wastewater treatment of pulp and paper.
Industrial water prices continue to rise
Industrial water intake limit
Increased emission water quality standards (COD, TOC, etc)
Enforcement requirements for environmental protection and water reuse rate, etc.
Large demand for fresh water
Large amount of wastewater discharge
The composition of wastewater is complex, and the content of organic pollutants and inorganic salts is high.
Core advantage of process package
Independent research and development, Global First
Turn waste into treasure and realize 100% full reuse of wastewater
Multiple 10,000-ton demonstration projects
Reuse water, salt, and dry mud
The water quality of the produced water is good and meets the requirements for productive reuse.
zld (zero liquid discharge)
Jiangsu Jiuwu Hitech Co., Ltd has done the largest zero liquid discharge project in paper pulp industry. The project is located in Japanese Oji Paper Co., Ltd. (OJI PAPER) in China, the scale of 40000m3/day of papermaking, pulp wastewater. Main processes include ozone-coupled biofilter (removing COD), the integrated membrane system of uf technology and reverse osmosis, electrodialysis (EDR) concentration system, MVR evaporation crystallization system. Through above-mentioned advanced processing system, the realization of wastewater recycling and zero liquid discharge. The clean water is supplied to the power plant desalination system and the production water system, waste salt is supplied to the Transportation Bureau to do snowmelt agent and chemical raw materials. The project which is the world's largest zero liquid discharge project in paper pulp industry has been stably operating for more than 3 years.
JIUWU HI-TECH has many unique membrane applications and more than 50 Patents regarding ceramic membrane solution, systems and process applications, in areas such as Food & Beverage, Bio-Pharm, Environmental and the Chemical Industry. We sincerely invite and welcome people from all around the world to invest and create more values together.
