PB12BTS Manual Concrete Placing Boom

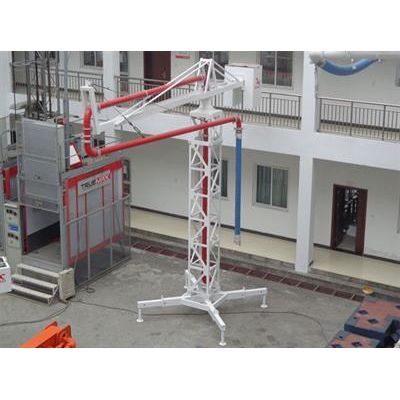

The PB12BTS placing boom with 12 M boom length , more wide placing radius than 10M placing boom, it is  Equipped with mast section basement, Free-standing height can be 6.8m,  enhance the placing height, it is very useful for pouring concrete on column.

Concrete placing boom is also called manual placing boom. It used to delivery and place the concrete , which is connected with concrete pump. As a auxiliary equipment for concrete pump, it can delivery the concrete quickly and accurately through the connected pipes like a mechanical hand. It also expands the concrete pumping area, and settles the problem of wall pouring effectively, and solves the problem of concrete conveying preferably.

Features of Manual Concrete Placing Boom

Equipped with Mast section basement, the freestanding height can be 6.8m.

Very useful for pouring concrete on column

Very simple structure, easy for installation and Maintenance.

Mechanical design, very easy to operate.

With 12M boom length, more wide placing radius

Applicable to the production of precast concrete structures inside and outside the room,

The production of prefabricated bridges, bridge columns, highway fence, concrete floor, etc.

Column (4m standard), Under frame is cross structure

Extended outriggers, convenient to use

Small volume, compact structure, light weight.

It can be put flexibly according to the construction requirements.

Do not subject to building height restrictions

Within the working range, it can pour concrete accurately without any interrupt. (shorten the concrete pouring time, improve work efficiency and casting quality, reduce the labor intensity. )

Easily operation, flexible rotation, convenient pouring, high efficiency and energy saving.

Only need 1-2 workers to control

Strict process control,  advanced processing equipment,  high quality.

Factory testing: Each placing boom was fully tested before delivery and the quality was  ensured.

European standard CE certification

Technical Specifications

MODEL
PB12BTS
Performance
Max Radius of Placing Boom (m)
12
Slewing Range
360°
Working Temperature(℃)
 -20~48
Boom
Delivery Pipeline Diameter(mm*mm)
φ133 * 4.5
1st Section
Length(m)
5.8
Articulation
0°~360°
2nd Section
Length(m)
6.2
Articulation
0°~360°
  Mode of Slewing
Bearing Slewing
  Mode of Control
Manual
  Remark
Lattice Type
  Delivery pipe dimension(mm)
DN125
  Total weight(with counterweight) (kg)
3100
  Counter weight (kg)
1300
  Max lifting weight(kg)
1800
