PB38BT-4R-E Hydraulic Placing Boom

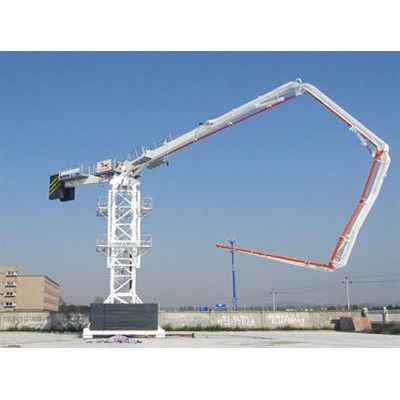

Lattice Tower concrete placing boom PB38BT-4R-E with the placing boom upper part, combine the function of tower and placing boom. With the rise of the building, the placing boom can increase the standard section by the own climbing frame. When the height exceeds the stationery height, the placing boom will be attached to the wall.

The operation method of this type placing boom become more simplified which can be operated only by 1 or 2 workers by controlling arms with radio remote control and cable remote control. It effects accurately concrete pouring uninterrupted which improving the efficiency and convenience. It also reduces labor intensity and saves on user cost. Compared with other types of column and climbing concrete placing boom, PB38BT-4R-E which Suitable for large construction projects, nuclear power project, grain, oil depots, and other large projects.

Features of Hydraulic Placing Boom

The main electronic components are purchased from the world-famous brand such as Scheider and Omron which make stable and reliable quality.

Combine the function of tower and placing boom. With the rise of the building, the placing boom can increase the standard section by the own climbing frame. When the height is more the stationery height, the placing boom will attached to the wall

Equipped with lifting mechanism, it can lift mast section when climbing.

Four arms design. The machine is fully driven by hydraulic and slew flexibly, with wide working range. Arms adopt high strength steel plate which is stronger and lighter.

Two modes of operation: wireless remote control and cable remote control, easy to operate.

Adopting electric-hydraulic proportional control to guarantee the placing boom more stable and the speed is adjustable

Intergrated design for pump station and electric control cabinet which installed in the lower support, which is easy for installatioin and also reduce failure rate

The column has an octagonal cross section, lighter weight, and greater bearing capacity.

Each column has universal interchangeability. When adding or reducing columns, it is more convenient to increase or decrease the conveying pipe and ladder.

The boom is a four-section arm made of high-strength steel plate with light weight and high strength. The corner of the arm reaches 210° and the cover the wider working range.

Technical Specifications

MODEL
PB38BT-4R-E
Performance
Max Radius of Placing Boom (m)
38
Free Standing Height(To The Joint Between The End of The Boom And Slewing Platform)(m)
45.5
Slewing Range
360°
Working Temperature(℃)
 -20~48
Power(Subject to Customer)
380V/50Hz
Boom
Delivery Pipeline Diameter(mm*mm)
φ133 * 4.5
Delivery Hose Diameter("*mm)
5"*3000
1st Section
Length(m)
14.91
Articulation
0°~86°
2nd Section
Length(m)
7.56
Articulation
0°~180°
3rd Section
Length(m)
7.65
Articulation
0°~180°
4th Section
Length(m)
7.72
Articulation
0°~180°
Type of Hydraulic Oil
Circumstance Temperature 5℃-48℃
IT NUTO H46
Circumstance Temperature -20℃-5℃
IT NUTO H32
Motor
power（KW）
30
  Hydraulic Pressure (Mpa)
30
  Mode of Slewing
Gear Slewing
  Mode of Climbing
Hydraulic Cylinder Climbing
  Mode of Control
1.Radio Remote Control
2.Cable Remote Control
  Delivery pipe dimension(mm)
DN125

Main configuration
1.Max radius:38m;
2.Boom: 4 sections;
3.Column: 2x10m;
4.Remote control : Included;
5.Floor frame climbing system;
6.With balance arms.
