Production of explosives - Case Study
Feb. 29, 2024
THE CLIENT
The Client is a major Eastern European company manufacturing explosives, dynamite, trigger systems, detonation fuses.
Most popular related searches
evaporator system
process water recycling
process water
water recycling
process water product
water recycling system
process water production
biodegradation
recycling system
THE CLIENT`S REQUEST
The Client seeks a solution to treat large quantities of highly biodegradable water difficult to treat with conventional biological plants.

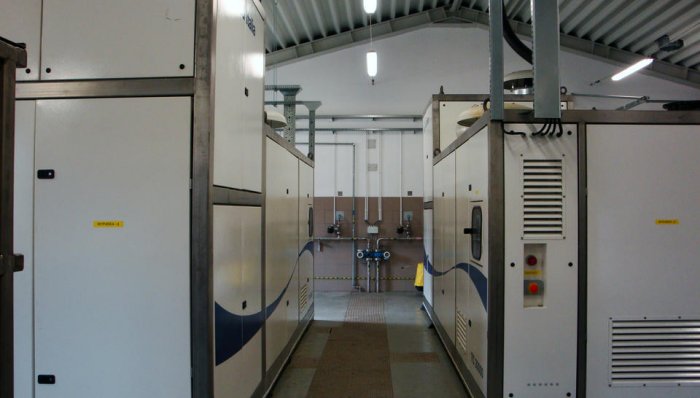

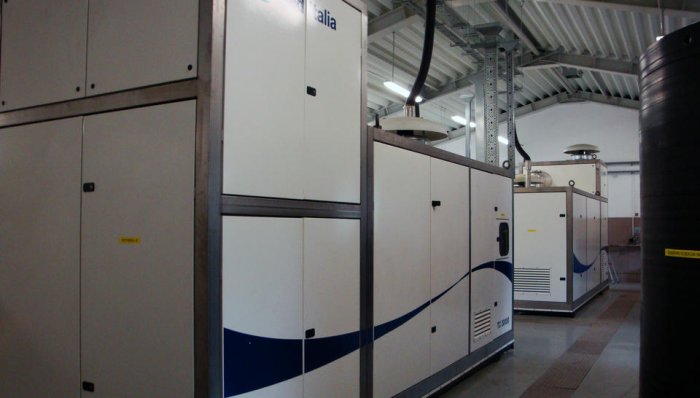

THE SOLUTION

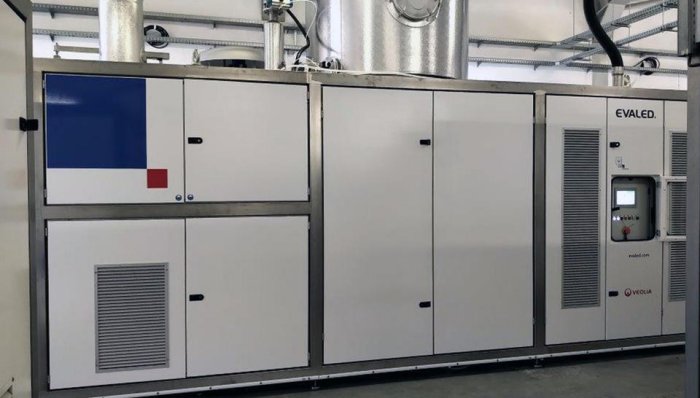

- Evaporation technology: 3x RV F 30
Construction material: AISI 316
Overall dimensions: 3x 14 sqm

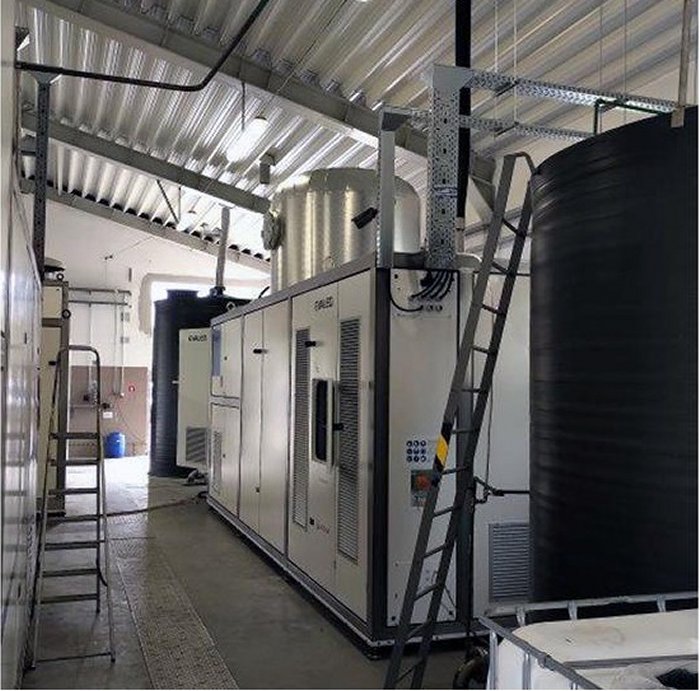

REPEAT ORDER after 13 years
- Evaporation technology: 2x RV F 40
- Construction material: AISI 316
- Overall dimensions: 2x 14 sqm
- Evaporation technology: RV F 40
- Construction material: UNS S32750
- Overall dimensions: 14 sqm

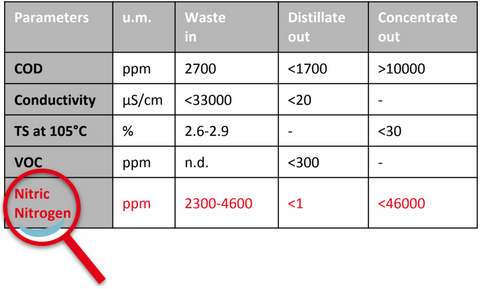

ANALYSIS OF MAIN PARAMETERS

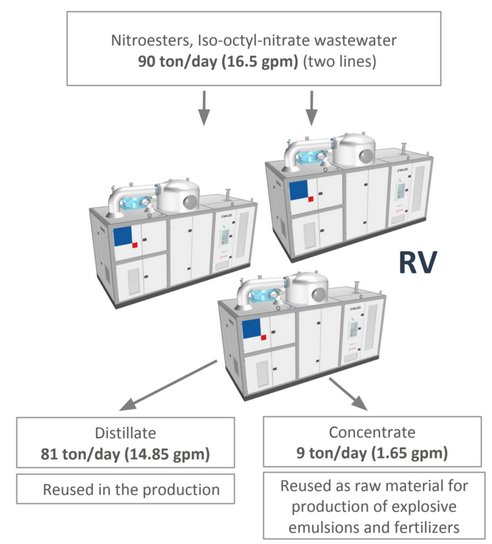

RESULTS
- Separated water: ?90%
- Concentration factor: 10 times
- 90% of the distillate recovered and reused in the production process (water recycling);
- concentrate reused in fertiliser production.
- Return on investment <1 year
