Project - WTP in Ankara / Turkey
Jun. 7, 2023
Courtesy ofEVERS GmbH & Co. KG
Successful conversion to EVERZIT® N Multilayer Filtration

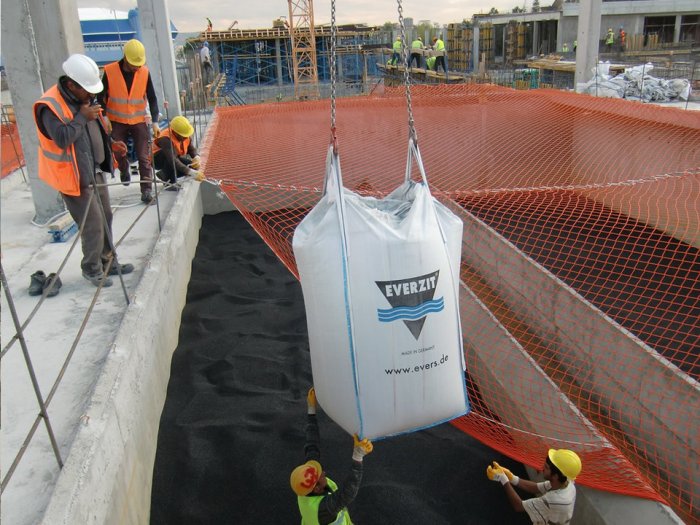

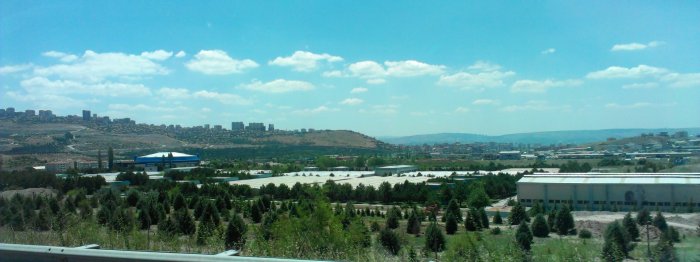

The Ivedik water treatment plant supplies the drinking water used by the City of Ankara. The plant now operates using over 4000 m³ of German-made EVERZIT® N anthracite filter media.

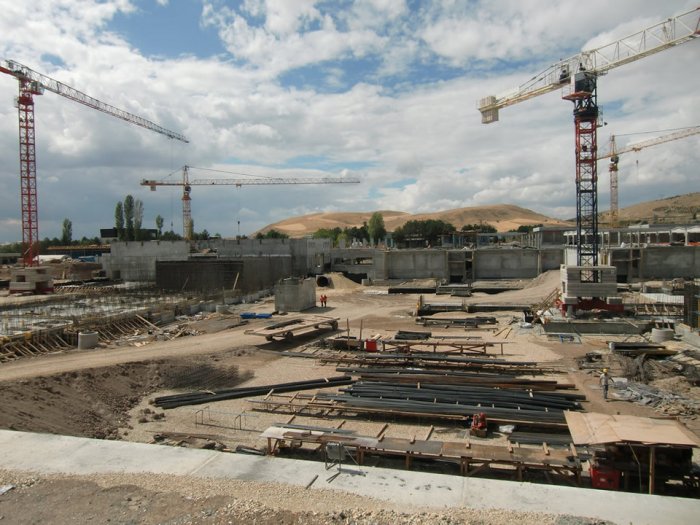

In an upgrade project carried out in the years 2013/2014, the existing 56 sand filter units of the facility were converted to EVERZIT® N multilayer filtration and complemented by 28 additional filter units. These measures increased the treatment capacity of the plant to 1,690,000 m³ per day.
Most popular related searches
sand filter system
anthracite filter media
water treatment plant
media filter
filter bed
anthracite filter
sand filter
water treatment
drinking water
drinking water supply

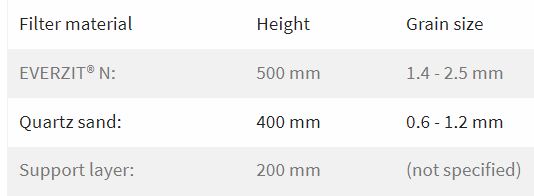

Used as the upper layer in these multilayer filter beds, EVERZIT® N increases treatment capacity and reduces operating costs by providing specific benefits:
- Increased solids filtration capacity
- Higher flow speeds through filter bed
- Reduced pressure drop
- Longer operation cycle of filter media
- Reduced backwash-related downtime and costs
- Capacity of filtration: approx. 70.000 m³/h, Approx. 1.690.000 m³/d
- No. of filter units: 84
- Type of filtration: open dual media filters
- Filter surface: 140 m²
- Total filter surface: approx. 11.760 m²
- Filtration velocity: approx. 6 - 8 m/h
- Year of construction: 2013 - 2014
