Stone wool production - Case Study
Feb. 29, 2024
THE CLIENT
The Client is a multinational manufacturer of mineral wood products, a world leader in industrial stone wool solutions, building insulation, acoustic ceilings, and engineered fibres. The Polish plant has 3 production lines with similar wastewater characteristics.
Most popular related searches
waste disposal cost
evaporator system
wood production
water recycling
waste disposal
building acoustics
waste reduction
process water recycling
produced water system
water evaporation system
THE CLIENT`S REQUEST
The Client`s project is part of a larger investment aimed at saving energy and involves the use of waste heat, reduction of disposal costs and of water consumption.

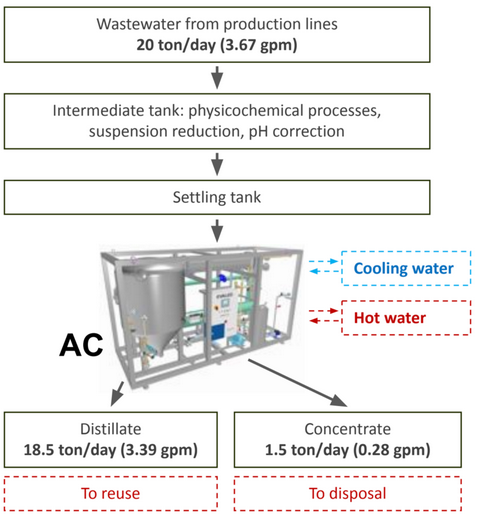

THE SOLUTION
- Evaporation technology: AC F 20
- Construction material: UNS S32750
- Overall dimensions: 9.1 sqm

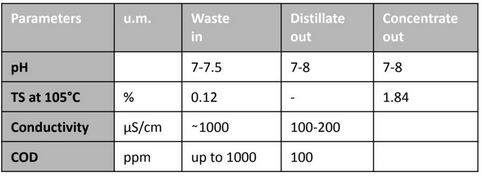

ANALYSIS OF MAIN PARAMETERS
RESULTS
- Reused water: 92.5%
- Concentration factor: ∼13.3 times
- Reducing waste volume and disposal costs
- Reducing water consumption
- Reuse of distillate in the production process
