Structural Design Differences Between Light, Medium, and Heavy Duty Overhead Cranes

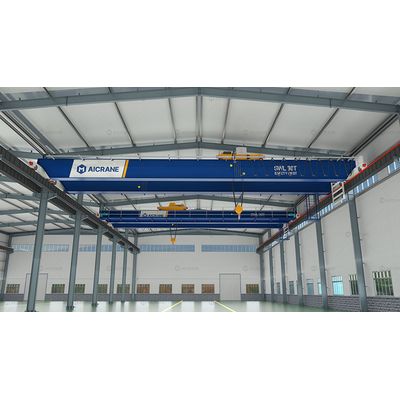

Overhead cranes are fundamental lifting systems in modern industrial facilities, enabling safe and efficient material handling across manufacturing plants, warehouses, steel mills, power stations, and heavy equipment workshops. While overhead cranes are commonly categorized as light duty, medium duty, and heavy duty, the distinction between these categories goes far beyond rated lifting capacity.

In practice, each duty class reflects profound structural design differences, influencing crane girder configuration, end carriage strength, wheel loads, steel structure integration, fatigue life, and overall system stability. Understanding these structural variations is essential for engineers, buyers, and project managers seeking reliable crane performance, long service life, and safe operation.

This article provides an in-depth comparison of the structural design characteristics of light, medium, and heavy duty overhead cranes, highlighting how design philosophy evolves as load demands increase.

1. Understanding Overhead Crane Duty Classification from a Structural Perspective

Overhead crane duty classification (often defined by FEM, ISO, CMAA, or GB standards) considers:

• Rated load
• Load spectrum
• Frequency of operation
• Stress cycles over service life


From a structural engineering viewpoint, these factors directly determine:

• Girder section size and type
• Steel grade selection
• Weld design and fatigue resistance
• End truck and wheel assembly configuration
• Connection methods to runway beams

As cranes move from light to heavy duty, structural design shifts from cost-optimized simplicity to fatigue-resistant, high-stability, reinforced systems.

2. Structural Design of Light Duty Overhead Cranes

2.1 Typical Applications

Light duty overhead cranes are commonly used in:

• Warehouses and logistics centers
• Assembly workshops
• Maintenance bays
• Small fabrication shops


They typically handle loads up to 5–10 tons, with relatively low operating frequency.

2.2 Girder Structure: Simplicity and Weight Optimization

Light duty cranes usually adopt:

• Single girder design
• Rolled steel sections or small box girders


Key structural characteristics:

• Smaller web and flange thickness
• Limited internal stiffeners
• Deflection-controlled rather than fatigue-controlled design


The structural focus is minimizing self-weight while maintaining sufficient stiffness to control deflection.

2.3 End Carriages and Wheel Loads

End trucks in light duty overhead cranes are:

• Compact and lightweight
• Equipped with smaller diameter wheels
• Designed for lower wheel pressures on runway beams


Because lifting cycles are limited, fatigue stress at wheel connections and bearing housings is generally not critical.

2.4 Connection to Building Structure

Light duty cranes often:

• Operate on standard runway beams
• Require minimal reinforcement of steel structure columns
• Allow bolted connections rather than welded reinforcements


This makes them ideal for cost-sensitive or retrofit projects.

3. Structural Design of Medium Duty Overhead Cranes

3.1 Typical Applications

Medium duty cranes are widely used in:

• General manufacturing plants
• Machining workshops
• Precast concrete facilities
• Equipment assembly lines


Capacities typically range from 10 to 50 tons, with moderate to frequent operation.

3.2 Girder Structure: Strength–Fatigue Balance

Medium duty cranes may use:

• Reinforced single girder designs
• Or double girder box structures, especially above 20 tons


Structural enhancements include:

• Thicker web and flange plates
• Internal stiffeners at wheel load transfer points
• Optimized box girder geometry to resist bending and torsion


Unlike light duty cranes, medium duty cranes are designed with fatigue life in mind, not just static strength.

3.3 End Carriages and Load Distribution

End carriages in medium duty cranes show notable upgrades:

• Larger wheels with higher load ratings
• Increased wheelbase for better load distribution
• Improved bearing housings and axle supports


Wheel loads become a critical structural parameter, influencing:

• Rail selection
• Runway beam design
• Column reinforcement in steel structures


3.4 Structural Redundancy and Stability

Medium duty cranes often include:

• Redundant load paths in girder design
• Better lateral stiffness to control sway
• Improved connections between girders and end trucks


These features improve operational stability, especially during:

• Diagonal lifting
• Trolley acceleration and braking

4. Structural Design of Heavy Duty Overhead Cranes

4.1 Typical Applications

Heavy duty overhead cranes operate in demanding environments such as:

• Steel mills
• Power plants

• Shipyards
• Heavy equipment manufacturing
• Foundries


Capacities typically exceed 50 tons and can reach several hundred tons, with continuous or near-continuous operation.

4.2 Girder Structure: Fatigue-Driven Engineering

Heavy duty cranes almost exclusively use:

• Double girder box structures
• Fully welded, high-strength steel construction


Key structural features include:

• Deep box girders with thick plates
• Extensive internal diaphragms and stiffeners
• Fatigue-optimized weld geometry
• Local reinforcement at trolley rail seats


Structural design is governed by:

• High stress cycles
• Dynamic load amplification
• Long-term fatigue performance


4.3 End Carriages, Wheels, and Load Paths

End carriages in heavy duty cranes are highly engineered components:

• Multiple wheel arrangements (often 4, 8, or more wheels per side)
• Forged or heat-treated wheels
• Equalizing mechanisms to balance wheel loads


These design measures reduce:

• Local overstressing of rails
• Uneven wheel wear
• Structural fatigue in runway beams


4.4 Integration with Workshop Steel Structure

Heavy duty cranes cannot be considered independent systems. Structurally, they are fully integrated with:

• Runway beams
• Building columns
• Foundation systems


Design considerations include:

• Horizontal forces from crane travel and braking
• Vertical impact loads
• Crane-induced building deflection


In many heavy-duty projects, crane loads dictate the entire workshop structural design.

5. How Structural Differences Affect Cost and Lifecycle Performance

As crane duty increases:

• Initial cost rises, driven by steel volume and fabrication complexity
• Service life increases, thanks to fatigue-resistant design
• Maintenance demands change, shifting from basic inspections to structured fatigue monitoring


Choosing a crane with insufficient structural design for the application often leads to:

• Excessive deflection
• Premature cracking
• Wheel and rail damage
• Costly downtime


6. Selecting the Right Structural Class for Your Project

From an engineering and commercial perspective, selecting between light, medium, and heavy duty overhead cranes requires:

• Accurate load assessment
• Realistic evaluation of operating frequency
• Understanding future production expansion
• Overdesign increases cost, but underdesign significantly increases risk.

Conclusion

The structural design differences between light, medium, and heavy duty overhead cranes reflect a clear evolution in engineering philosophy—from simple load-bearing structures to fully integrated, fatigue-driven lifting systems. Girder configuration, steel thickness, end carriage design, wheel load management, and building integration all change dramatically as crane duty increases.

For buyers, EPC contractors, and plant designers, understanding these structural distinctions is essential to selecting an overhead crane that delivers long-term safety, stability, and performance, rather than just meeting nominal capacity requirements.

A well-matched structural design is not only a technical choice—it is a strategic investment in operational reliability and lifecycle value.
