Submersible Dredge Pumps Explained: Performance, Applications, and Selection Guide

Dredging and slurry pumping challenges

Dredging and slurry pumping are vital processes in industries such as mining, construction, and environmental management. These operations often involve moving abrasive, dense mixtures of solids and liquids, which can quickly wear down equipment and cause frequent clogging or downtime. Handling such mixtures efficiently demands specialized pumping solutions that withstand tough conditions while maintaining reliable performance.

Role of the submersible dredge pump in solving these challenges

The submersible dredge pump has emerged as a leading solution to these challenges. Unlike traditional dredge pumps, submersible dredge pumps are designed to operate fully submerged in the slurry, providing direct suction and minimizing priming problems. This capability allows them to handle high concentrations of solids with less risk of clogging and improved operational efficiency. Whether working in mining tailings, sediment removal, or wastewater lagoons, submersible dredge pumps optimize pumping tasks that traditional equipment cannot handle effectively. Moreover, specialized variants like the submersible slurry pump and hydraulic submersible dredge pump cater to specific project demands, enhancing versatility across industries.

Core Functionality And How It Differs From Standard Dredge Pumps

A submersible dredge pump is a slurry pump that is built to be placed underwater within the slurry it pumps. The motor and pumping components are fully enclosed and sealed to operate reliably submerged, directly extracting slurry or sediment and pushing it through discharge pipelines.

Difference From Standard Dredge Pumps:

Standard dredge pumps are often mounted above the slurry surface and require priming, suction piping, and sometimes auxiliary equipment to draw fluid into the pump. This setup can introduce inefficiencies and maintenance challenges, including airlocks and suction clogs. The submersible dredge pump eliminates these by being immersed at the source, enabling immediate fluid intake with reduced suction lift.

Comparison With Vertical And Horizontal Dredge Pump Designs

Vertical dredge pumps typically stand on a shaft extending into the slurry and require complex support structures. Horizontal dredge pumps sit on a base above the slurry and need priming. Both designs can be bulky, less portable, and prone to priming-related issues. In contrast, submersible dredge pumps have a compact, modular design that enables easier installation and movement. Their ability to function underwater grants superior adaptability for projects where installation space or mobility is limited.

Benefits Of Submersion During Operation

Operating submerged allows these pumps to avoid cavitation, a common problem in dredge pumps caused by vapor bubbles collapsing and damaging impellers. The direct contact with slurry reduces suction losses, improves pump efficiency, and minimizes wear. Submersion also simplifies the system layout by reducing the need for suction piping and priming equipment.

Extended Insight

The design of a submersible slurry pump specifically accounts for the high-density slurry environments. These pumps incorporate features that enable them to handle the unique challenges posed by different slurry compositions, including variable viscosity and particle size. Meanwhile, the hydraulic submersible dredge pump variant is engineered for maximum operational flexibility, delivering high power density through hydraulic transmission. This capability makes the hydraulic submersible dredge pump an indispensable tool for dredging applications requiring robust power delivery in remote or difficult-to-access environments.

Impeller Design And Solids Handling Capabilities

The impeller is the heart of the submersible dredge pump, engineered to handle abrasive solids and prevent clogging. Pumps use either open or semi-open impellers with robust clearances to pass large particles and fibrous materials without damage. The hydraulic design maximizes flow while maintaining solids suspension to avoid sedimentation inside the pump.

Sealing Systems And Motor Protection

Reliable sealing is critical to protect the motor from slurry ingress. Submersible dredge pumps feature double mechanical seals or cartridge seals with flushing systems to maintain a clean sealing environment. The seals are designed to withstand abrasive and corrosive slurries, ensuring motor longevity.

Material Construction For Abrasion And Corrosion Resistance

The pumps’ wetted parts are typically made of high-chrome alloys, rubber linings, or specially coated metals to resist wear and corrosion from abrasive sediments and chemical contaminants. This robust material construction extends the operational lifespan in harsh conditions, reducing the frequency of repairs and replacements.

Working Principle Summary

The motor drives the impeller submerged in slurry, drawing the mixture into the pump inlet. The impeller accelerates the slurry, converting mechanical energy into pressure energy. The slurry then exits through the discharge outlet, flowing to the desired location via piping. Seals and motor housings protect against slurry damage, while material selection ensures durability.

Additional Engineering Details

In the case of the submersible slurry pump, advanced hydraulic and mechanical designs work together to optimize slurry velocity and reduce wear on pump components. Similarly, the hydraulic submersible dredge pump employs high-pressure hydraulic fluid to transfer power efficiently from the power unit to the impeller shaft, allowing for remote motor placement and enhanced safety in volatile environments. These design nuances provide operational advantages that translate into reduced energy consumption and increased pump longevity.

Electric Submersible Slurry Pump

Electric-powered submersible slurry pumps are widely used due to their efficiency, controllability, and lower operational noise. They offer precise speed control through variable frequency drives, enabling operators to adjust flow and head based on process needs. These pumps are suited for fixed or semi-fixed dredging sites like tailings ponds and sediment lagoons where electric power is readily available.

Hydraulic Submersible Dredge Pump

The hydraulic submersible dredge pump integrates with hydraulic power units (HPUs), providing power via hydraulic fluid instead of electricity. This design is highly advantageous for remote or hazardous environments where electric power is limited or risky, such as underwater mining or dredging near flammable materials. Hydraulic pumps offer ruggedness, ease of maintenance, and can be remotely operated with minimal cables. Their modular build allows them to be mounted on portable platforms or dredge sleds for flexible deployment.

Application-Specific Variants

Variants exist to address unique operational requirements. For example, some submersible dredge pumps are optimized for very fine slurry handling, with tight tolerances to prevent clogging. Others are designed with heavy-duty abrasion resistance for sand and gravel applications. Modular designs allow adding or removing impeller stages for customized flow and pressure.

Comparative Operational Benefits

The submersible slurry pump excels in energy efficiency and ease of control for electrically powered sites. In contrast, the hydraulic submersible dredge pump provides unmatched flexibility in mobile or offshore dredging operations. Both types benefit from compact size and robust construction, but are selected based on the power availability and environmental constraints of the application.

• Mining And Mineral Recovery

Submersible dredge pumps excel in mining operations by handling thick slurries and abrasive tailings with high solids content. They facilitate efficient recovery of minerals by pumping from tailings ponds and slurry ponds, reducing downtime caused by clogging or wear. The submersible slurry pump variant is especially effective in handling mineral slurries that require precise flow control. In contrast, the hydraulic submersible dredge pump is preferred for deep-water mining and remote sites.

• Sand And Gravel Pits

The pumps handle coarse sediment removal and water clarification tasks, maintaining production efficiency. Their durability helps manage the constant abrasion from sand and gravel particles.

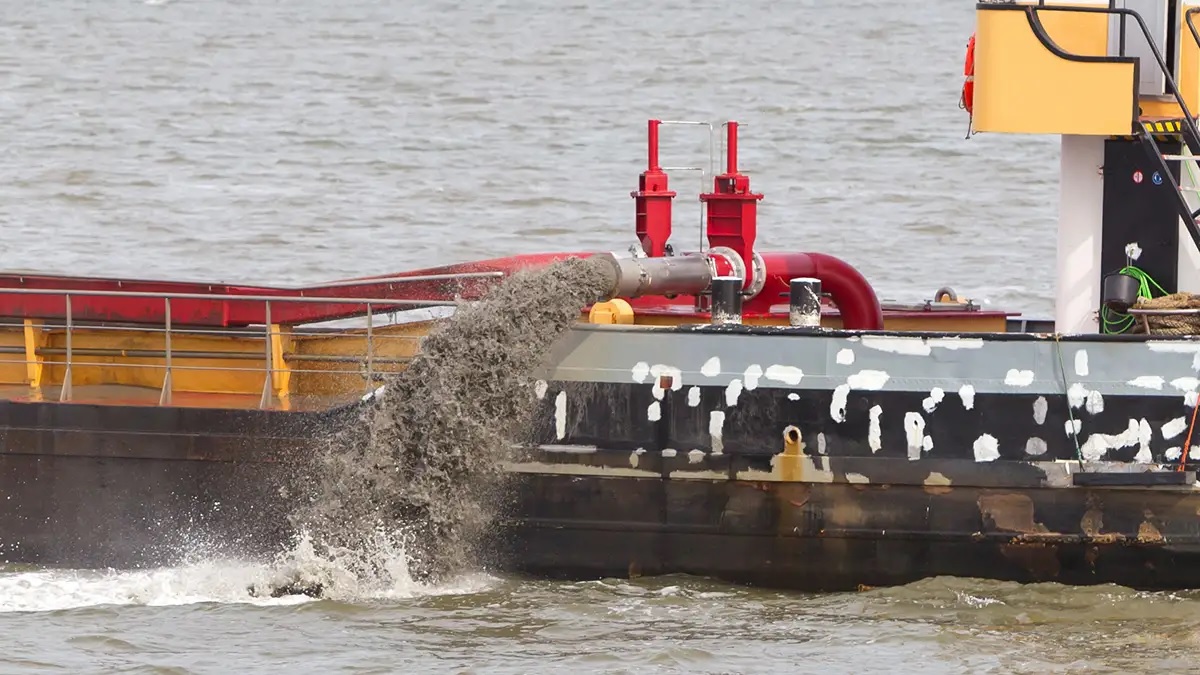

• Marina, Harbor, And Canal Maintenance

Regular dredging is essential to prevent sediment buildup and maintain navigability. Submersible dredge pumps remove silt and debris efficiently, minimizing environmental disruption and operational costs.

• Tailings Pond Reclamation And Wastewater Lagoons

Environmental regulations demand the safe removal of sludge and sediments from tailings and lagoons. The submersible dredge pump offers reliable operation in these sensitive areas, supporting sediment removal without excessive turbidity or ecological impact.

• Extended Uses

The submersible slurry pump also plays a critical role in industrial waste management and dewatering processes, where controlling sediment and solids concentration is crucial. The hydraulic submersible dredge pump’s adaptability makes it ideal for emergency dredging tasks, pipeline flushing, and underwater excavation.

Evaluating Material Type And Concentration

Assess the slurry’s abrasiveness, particle size, and solids concentration. Highly abrasive materials require pumps with hardened alloys or rubber linings, while chemical contaminants might necessitate corrosion-resistant coatings.

Pump Depth, Flow Rate, And Head Requirements

Determine how deep the pump will operate and the desired flow and pressure. Deeper applications require pumps with appropriate motor power and cable length. Matching pump curves to process demands ensures energy efficiency.

Matching Power Sources: Electric Vs. Hydraulic Options

Consider site conditions and operational constraints. Electric pumps suit stable sites with power access; hydraulic pumps are preferable for remote or explosive environments due to their safe, flexible power delivery.

Additional Considerations

Factor in maintenance access, ease of spare parts procurement, and system integration. Custom configurations from suppliers like DAE Pumps allow fine-tuning for optimal performance.

Technical Decision-Making

When selecting a submersible slurry pump, assess the power consumption relative to the slurry characteristics, as energy efficiency can significantly impact operating costs. For projects involving hazardous materials or requiring remote dredging, the hydraulic submersible dredge pump’s ability to safely isolate the power source while maintaining high pumping capacity is invaluable.

• Portability And Setup Ease

Submersible dredge pumps do not require extensive priming systems or structural support, allowing rapid deployment and relocation. This flexibility benefits projects with changing or temporary dredging needs.

• Minimal Priming And Clogging Issues

The underwater placement ensures the pump remains primed, eliminating the downtime and labor associated with manual priming. Open impeller designs reduce clogging risk, even when pumping fibrous or coarse solids.

• Efficient Solids Handling In Confined Or Underwater Locations

Their ability to operate directly within the slurry enables pumping from difficult-to-reach locations, including deep pits, lagoons, or underwater deposits.

• Lower Operational Costs

Improved efficiency, reduced maintenance, and longer service intervals contribute to lower total cost of ownership compared to traditional dredge pumps.

• Operational Safety And Environmental Impact

The hydraulic submersible dredge pump reduces the risks associated with electric power in underwater or explosive environments, enhancing safety. Additionally, submersible pumps typically generate less turbidity and sediment resuspension, mitigating environmental impacts during dredging.

Dae Pumps’ Submersible Dredge Pump Models

DAE Pumps offers a comprehensive line of submersible dredge pumps, including both electric and hydraulic versions. Each model features optimized hydraulic designs for maximum solids handling and efficiency.

Performance Highlights And Durability Features

The pumps incorporate wear-resistant materials, advanced sealing technology, and modular components designed for ease of maintenance. Their ability to handle abrasive slurries with minimal wear extends uptime and lowers costs.

Real-World Case Studies And Results

Clients using DAE Pumps’ hydraulic submersible dredge pumps have reported significant reductions in downtime and maintenance compared to legacy equipment. Successful deployments in mining tailings, harbor dredging, and environmental remediation underscore the pumps’ reliability and adaptability.

Support And Customization

DAE Pumps provides tailored solutions to meet unique project requirements, including custom impeller designs and power options. Comprehensive technical support and training ensure that customers achieve optimal pump performance and longevity.

• Preventive checks and servicing: Regularly inspect mechanical seals, impellers, and motor casings for wear or damage. Monitor motor temperature and vibration to detect early signs of failure.
• Troubleshooting performance issues: Address reduced flow or abnormal noise promptly. Common issues include worn impellers, seal failure, or motor problems. Use manufacturer support to identify root causes quickly.
• Spare parts and support availability: Maintain an inventory of critical spare parts like seals, bearings, and impellers. Work with suppliers like DAE Pumps that offer robust after-sales support and technical assistance.
• Operator training: Ensure operators understand the unique requirements of submersible dredge pumps, including correct installation, cable management, and operation under slurry conditions.
• Maintenance in harsh environments: For pumps like the hydraulic submersible dredge pump working in remote or hazardous locations, scheduled maintenance may be challenging. Using remote monitoring systems and condition-based maintenance practices can enhance uptime and reduce unexpected failures.

Integration of smart sensors and IoT

The next generation of submersible slurry pumps and hydraulic submersible dredge pumps is incorporating real-time sensors for vibration, temperature, and flow monitoring. These innovations enable predictive maintenance, minimizing unplanned downtime and improving operational efficiency.

Energy efficiency improvements

Advances in motor design, hydraulic power units, and impeller hydraulics are reducing energy consumption while maintaining or increasing pumping capacity.

Materials technology

Research into new abrasion-resistant coatings and composite materials aims to extend pump life, even in the harshest slurry environments.

Modular and hybrid power configurations

Hybrid submersible pumps combining electric and hydraulic power sources are under development, offering greater flexibility for complex dredging projects.

Environmental considerations

Low-turbidity pump designs minimize sediment disturbance, supporting environmental compliance and aquatic habitat preservation.
