Submersible Sludge Pumps: A Comprehensive Guide for Industrial Sludge Management

A submersible sludge pump is a centrifugal pump designed to operate while fully submerged in the pumped medium. It is engineered to handle high concentrations of solids, high viscosity, and variable flow rates without clogging or compromising efficiency. This makes it the go-to solution for heavy-duty sludge and slurry movement.

Key Components and Design

• Open Impeller or Vortex Design: Prevents clogging by allowing large solids to pass through.
• Heavy-Duty Casing: Made of materials like cast iron, high-chrome alloy, or stainless steel to resist wear and corrosion.
• Agitator System: Keeps solids suspended to maintain consistent flow.
• Dual Mechanical Seals: Oil-filled chambers protect the motor from abrasive and corrosive materials.
• Thermal Overload Protection: Ensures safe operation under extreme conditions.

These components work together to create a more resilient, less maintenance-intensive, and cost-effective submersible pump for sludge in the long run.

Common Use Cases

• Digester and clarifier sludge removal
• Sediment transfer in dredging projects
• Grit and silt pumping in civil construction
• Slurry movement in mineral processing
• Refinery waste sump drainage

When used correctly, a submersible sludge pump drastically reduces downtime, improves transfer efficiency, and minimizes the total cost of ownership, especially when considering the submersible sludge pump’s lifecycle performance in terms of price.

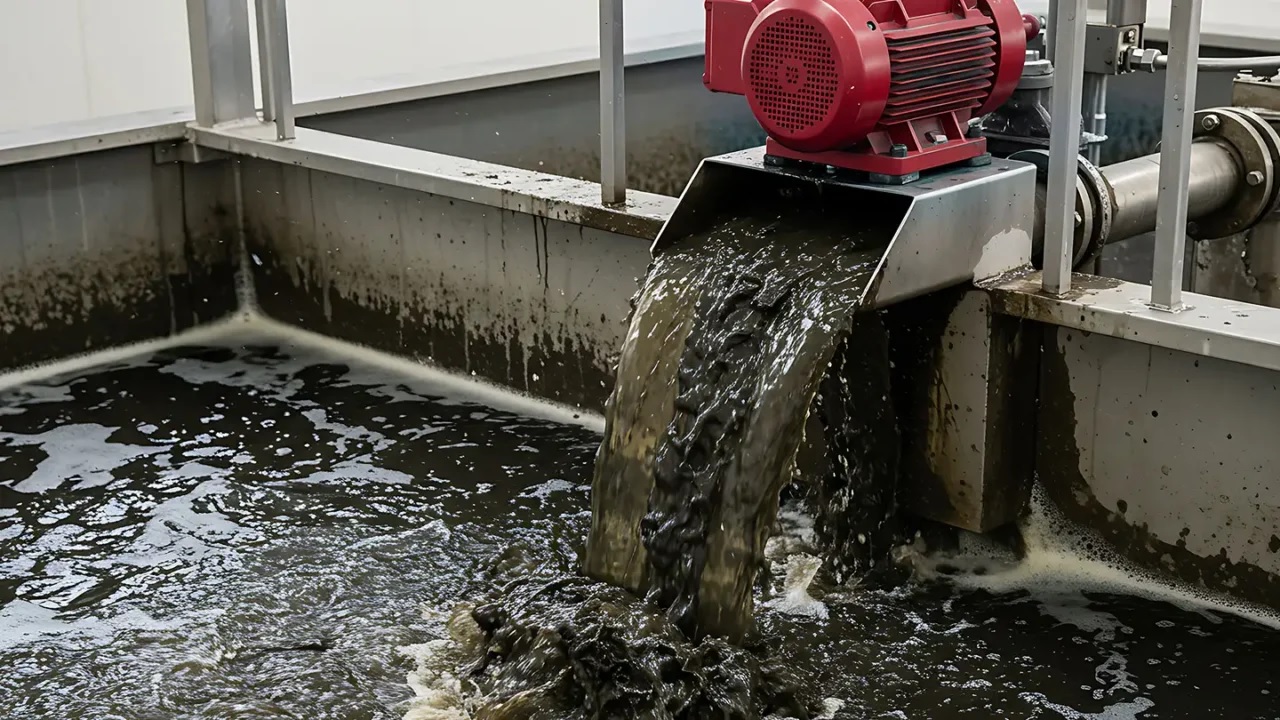

Municipal Wastewater and Sanitation

Wastewater treatment plants use submersible sludge pumps for scum removal, digester sludge transfer, and clarifier discharge. These pumps are often deployed in lift stations where ragging and solids content are too high for conventional equipment. Given the risk of fines or shutdowns due to EPA violations, pump failure is not an option.

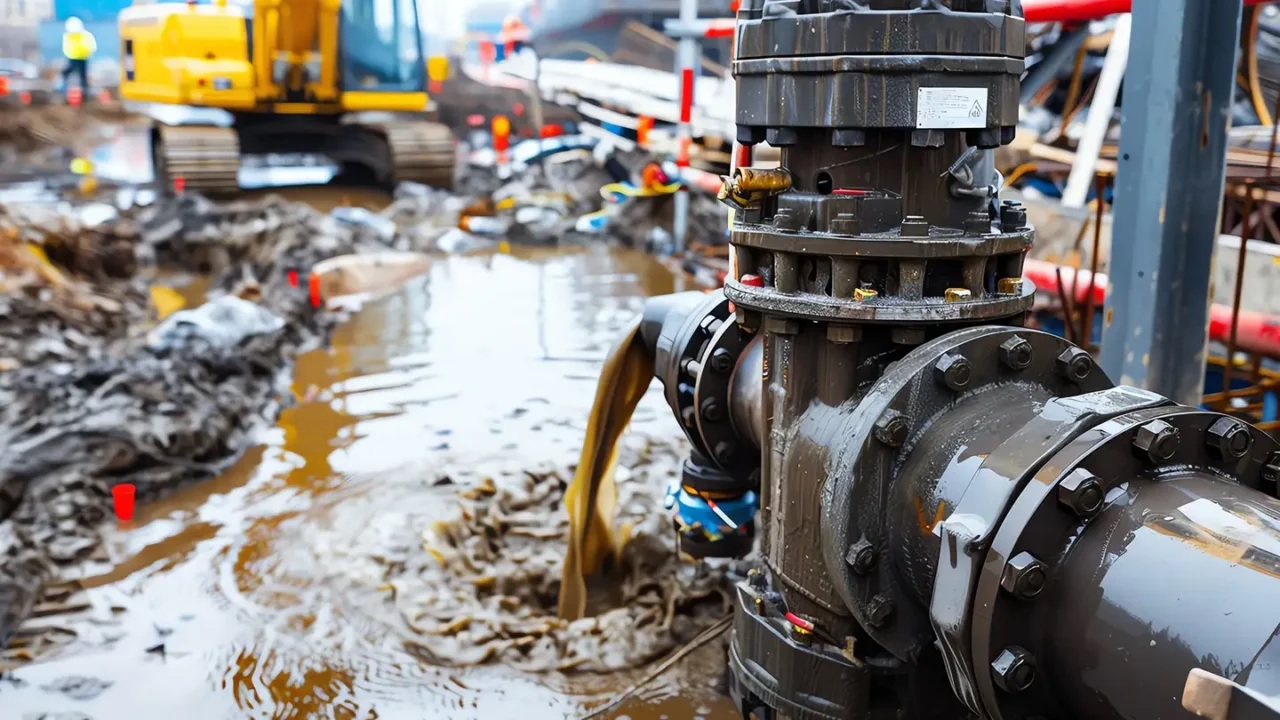

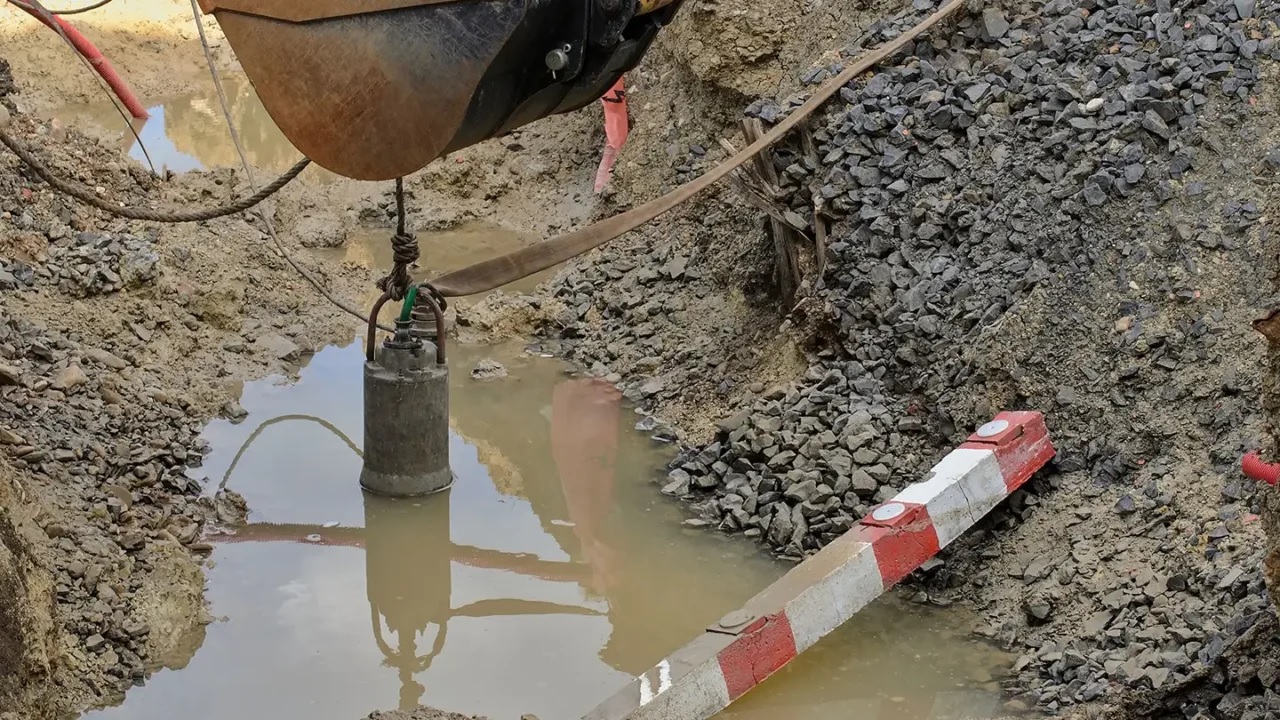

Construction and Infrastructure Projects

In excavation, tunneling, and large-scale dewatering operations, submersible pumps for sludge systems manage slurry-laden groundwater containing bentonite, sand, and grout. These materials are highly abrasive and require a rugged pumping solution. DAE Pumps offers high-head models ideal for vertical shaft applications where access is limited and pressure demands are high.

Mining and Mineral Extraction

Mining operations generate significant volumes of slurry and tailings that need continuous transfer to settling ponds or processing facilities. A commercial sludge pump designed to handle coarse solids and high specific gravity is essential. Whether in coal, copper, gold, or rare earth mineral sites, submersible sludge pumps play a central role in maximizing uptime and productivity.

Oil, Gas, and Petrochemical Operations

Flare pits, oil-water separators, and process waste sumps in refineries and chemical plants accumulate dense sludge. Explosion-proof submersible sludge pump models equipped with high-resistance seals and anti-corrosive coatings are required. DAE Pumps provides ATEX-rated pumps that major operators across North America trust.

Industrial Manufacturing and Food Processing

In pulp and paper mills, breweries, and meat processing plants, handling organic sludge is a routine process. A reliable submersible pump for sludge helps prevent bottlenecks in waste treatment systems and ensures compliance with environmental standards.

Flow Rate and Head

Understanding your application’s required gallons per minute (GPM) and total dynamic head (TDH) is essential. DAE Pumps offers submersible sludge pumps ranging from 50 to 7,000 GPM and heads of up to 250 feet, ensuring you find a unit that precisely meets your system’s needs.

Solids Handling

The ability to pass solids of 2–5 inches is vital in industrial sludge operations. Oversized volutes and agitator systems enable submersible pump models from DAE Pumps to outperform standard units in handling sludge.

Material of Construction

Choose a material based on your fluid’s chemistry:

• Cast Iron: Durable and cost-effective for neutral pH sludge.
• High-Chrome Alloy: Ideal for applications with high abrasion and solid content.
• Stainless Steel (316/duplex): Resistant to corrosion, ideal for chemical and food-grade waste.

Material selection directly affects both maintenance frequency and the price of the submersible sludge pump over the equipment’s life.

Motor Specifications

DAE Pumps offers models from 3 HP up to 150 HP. Motor enclosures are available in TEFC, explosion-proof, and immersion-rated options, ensuring safety and reliability under all conditions.

Automation and Controls

SCADA-ready interfaces, level control floats, and VFD integration enable intelligent control of your commercial sludge pump, resulting in reduced energy consumption and improved uptime.

When evaluating equipment for demanding fluid handling tasks, understanding the cost dynamics behind the submersible sludge pump price is essential. Whether you are procuring for municipal wastewater treatment, mining, or industrial sludge management, your investment should reflect both immediate project requirements and long-term operational efficiency.

Key Pricing Influencers

• Power and Size

One of the primary factors influencing the price is the pump’s horsepower (HP) and capacity, typically measured in gallons per minute (GPM). A larger submersible pump for sludge with high throughput capability will typically require more powerful motors and a larger construction, which directly increases the purchase price.

• Material and Durability

The composition of the pump’s casing, impeller, and wear components plays a major role in its cost. Pumps constructed with high-chrome alloys, hardened steel, or stainless steel are better equipped to handle abrasive or corrosive sludge environments. While this increases the initial investment, it significantly extends the pump’s service life and reduces the frequency of part replacements.

• Agitator and Cutter Systems

To prevent clogging and to ensure continuous flow, especially in environments with high solids content, many submersible sludge pumps are equipped with integrated agitators or cutter blades. These components improve performance but also contribute to a higher base cost.

• Seal Technology

Dual mechanical seals, particularly those crafted from high-quality materials such as silicon carbide or tungsten carbide, provide superior resistance to slurry intrusion and wear. Though more expensive, these seals enhance reliability and minimize unplanned downtime.

• Custom Features and Compliance

Projects that demand explosion-proof motors, specialized discharge connections, or site-specific installation setups often require additional customization. These modifications can significantly increase the price of the submersible sludge pump, but are sometimes non-negotiable due to regulatory or safety compliance requirements.

In many cases, selecting a higher-end submersible pump for sludge can result in significant long-term savings. Fewer breakdowns, decreased maintenance needs, and greater energy efficiency often justify the upfront cost. For operations where reliability and uptime are non-negotiable, a quality submersible pump for sludge is a cost-effective long-term investment.

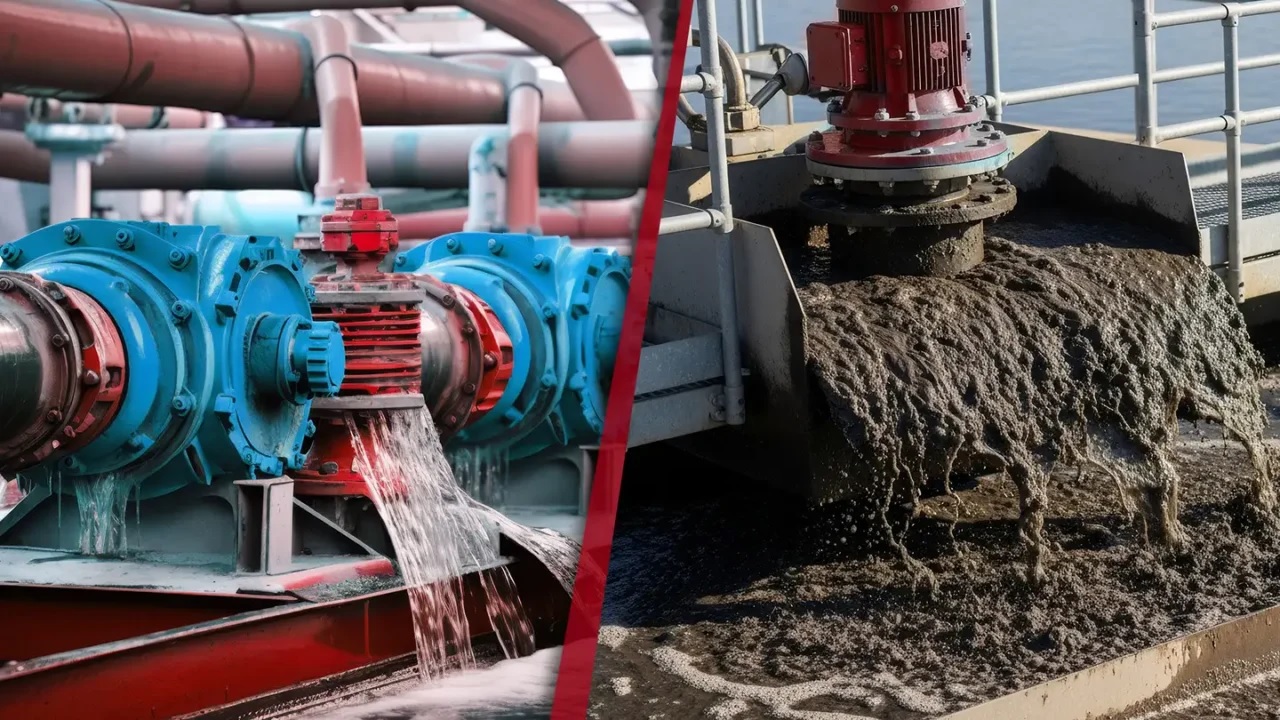

When comparing pump options for demanding environments, it’s important to understand the fundamental differences between commercial sludge pumps and their light-duty counterparts. While both may appear similar at first glance, their performance capabilities, durability, and long-term reliability differ significantly, particularly when handling abrasive and viscous materials such as sludge.

What Makes a Pump “Commercial Grade”?

• Continuous Duty Motors

Commercial sludge pumps are equipped with continuous-duty motors designed to operate continuously without overheating or failure. This is critical in operations such as wastewater processing, dredging, or mining, where downtime is not an option.

• Larger Solid Passage

A true commercial-grade submersible pump for sludge can pass solids of at least 2 inches in diameter, including rocks, fibrous organics, and debris. This capability is essential in maintaining uninterrupted flow and preventing clogging during high-load applications.

• Heavy Castings and Industrial Coatings

These pumps are constructed with thick, wear-resistant castings and coated to withstand prolonged exposure to abrasive slurry. Unlike light-duty models, which may suffer rapid deterioration, commercial units maintain structural integrity under the harshest conditions.

• Advanced Seal and Bearing Protection

In aggressive sludge-handling tasks, pumps are subjected to extreme mechanical and chemical stress. Commercial sludge pumps are designed with premium mechanical seals and reinforced bearings that resist shock loads and prevent seal failures, thereby extending service intervals.

• Field-Serviceable Components

Ease of maintenance is another hallmark of commercial sludge pumps. These models are designed for quick access to key components, enabling in-field inspections, part replacement, and minimizing downtime, ultimately reducing operational costs over time.

In contrast, light-duty drainage pumps are built for occasional, clean-water tasks and aren’t engineered to handle abrasive solids or high-viscosity fluids. Using a light-duty pump for sludge applications can result in rapid wear, clogging, and premature failure.

While commercial sludge pumps command a higher price, the added investment ensures long-term savings. By withstanding industrial abuse and operating reliably under extreme conditions, a commercial-grade submersible pump for sludge delivers superior performance and a lower total cost of ownership.

On-Site Conditions Checklist

• What are the fluid’s viscosity, solids content, and pH?
• What discharge height and distance are required?
• Is the application continuous or intermittent?
• What power supply is available: voltage, phase, and frequency?
• Is there a confined space or access limitation?

Answering these questions with your pump supplier ensures the selected submersible pump for sludge meets real-world conditions.

Performance Curve Evaluation

A pump performance curve plots flow rate vs. head. It’s critical to select a submersible sludge pump whose curve aligns closely with your duty point, optimizing efficiency and minimizing energy waste.

Engineering Consultation

DAE Pumps provides CAD drawings, pump modeling, and site-based support to help you size and specify the correct unit. This not only ensures the right fit but also prevents overdesign, which could unnecessarily increase the price of your submersible sludge pump.

When it comes to handling thick, abrasive, and high-solids materials, DAE Pumps stands out as a leading provider of robust pumping solutions. With a long-standing reputation for engineering excellence and customer-focused service, DAE Pumps offers a comprehensive range of products specifically tailored for sludge management in industrial, municipal, and environmental applications.

Why Customers Trust DAE Pumps:

• Unmatched Durability

DAE Pumps are constructed using premium-grade materials, such as hardened steel and high-chrome alloys, to withstand the most severe conditions. Whether it’s abrasive mining slurry, municipal biosolids, or dredging sludge, each submersible sludge pump is built to perform reliably with minimal wear and tear.

• Custom Solutions for Every Site

Every sludge application has unique challenges. That’s why DAE Pumps offers fully customized pumping systems—including mobile units, skid-mounted assemblies, and integrated control panels—designed to meet the exact specifications of your project. From deep pit dewatering to continuous flow sludge transfer, DAE provides the ideal submersible sludge pump configuration to maximize efficiency and uptime.

• Rapid Lead Times and U.S.-Based Inventory

DAE Pumps understands that downtime can be costly. With a well-stocked inventory housed in the United States, they provide fast delivery and responsive customer support, ensuring that your operations stay on schedule without long wait times for overseas shipping.

• End-to-End Support

Beyond product delivery, DAE Pumps offers comprehensive lifecycle support—from system design consultation and product selection to on-site startup and after-sales service. This commitment ensures seamless integration and long-term operational success with every submersible sludge pump deployment.

• Proven Global Reach

DAE Pumps supports operations across the U.S., Canada, Latin America, and the Middle East, offering localized service and technical expertise backed by global logistics and manufacturing capabilities.

Whether you need a standard heavy-duty model or a highly engineered commercial solution, DAE Pumps delivers value without compromising performance. Their submersible sludge pump options strike the perfect balance between cost-efficiency, durability, and long-term ROI, making them the preferred choice for sludge handling professionals worldwide.

Heavy-duty sludge applications demand more than just a generic pump. You need a system that can operate reliably under abrasive, high-solid, or corrosive conditions without interruption. A well-specified submersible sludge pump will save you thousands of dollars in maintenance, downtime, and lost productivity.

While the submersible sludge pump price is a consideration, it should be evaluated in conjunction with factors such as durability, support, efficiency, and long-term performance. With DAE Pumps, you get a solution engineered for your toughest challenges—supported by a team that understands your operation from the inside out.

Choosing the right submersible pump for sludge is not just about today’s job—it’s about ensuring the long-term resilience of your entire system.

Looking for a high-performance submersible sludge pump that meets your exact project needs? Contact DAE Pumps today for expert advice, tailored system recommendations, and a detailed quote for a submersible sludge pump. Our team is ready to help you find the right submersible pump for sludge, engineered for heavy-duty performance and supported for the long haul.
