Surface treatments: Nickel recovery - Case Study
Feb. 29, 2024
THE CLIENT
The Client is a leading manufacturer of professional tools and instruments. Its catalogue consists of products aimed at the professional in industry, crafts and car repair, as well as experienced hobbyists.
Most popular related searches
water recycling
evaporator system
nickel recovery
process water recycling
produced water system
water evaporation system
water recovery
process water
bathing water
water evaporator
THE CLIENT`S REQUEST
The client wishes to recover as much of the raw material Nickel as possible in order to save on salt additives in electroplating baths and to reuse water for rinses.

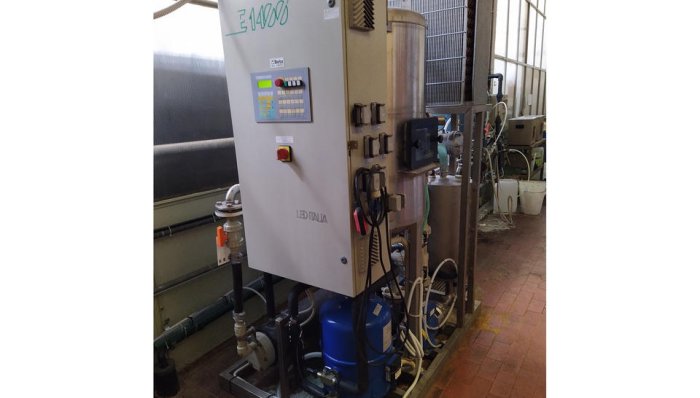

THE SOLUTION
- Evaporation technology: PC F 1.4
- Construction material: UNS S32750
- Overall dimensions: 1.7 sqm

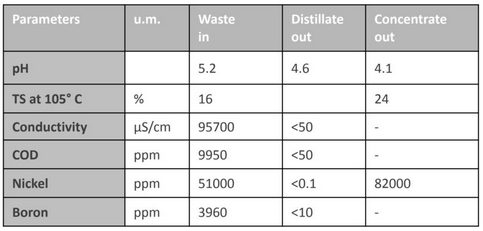

ANALYSIS OF MAIN PARAMETERS

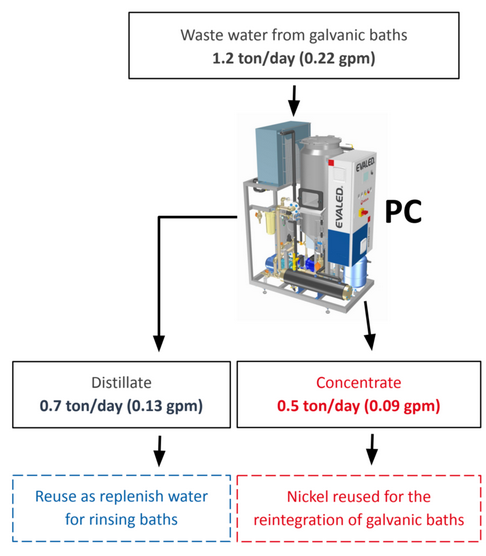

RESULTS
- Water reuse: ?100%
- Recovery of valuable material: Ni
- ZLD plant with water reuse for rinse baths
- Ni reused for galvanic bath reintegration
- Return on investment: ?2 years
