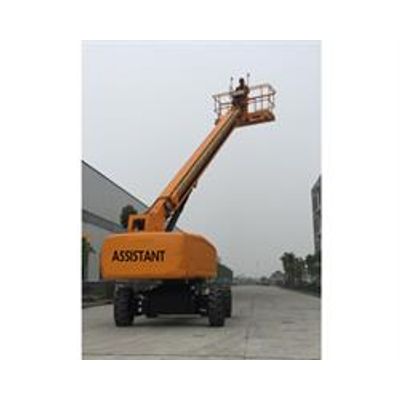

Telescopic Man lift 20-22M

We are professional Telescopic Man lift 20-22M supplier and factory in China. We can produce the product according to your requirements and provide articulated forklift for sale.

Telescopic Manlift 20-22M Measurements & Specifications

MODEL
GTBZ20
GTBZ22
MEASUREMENTS
Metric
US
Metric
US
Working height maximum *
22.4m
73ft
23.9m
78ft
Platform height maximum
20.7m
68ft
22.2m
73ft
Horizontal reach maximum **
19.1m
63ft
20.2m
66ft
Below ground reach
1.76m
5ft9in
2.93m
9ft7in
A
Platform length-8ft model
0.91m
3ft
0.91m
3ft
Platform length-6ft model
0.76m
2ft
0.76m
2ft
B
Platform width-8ft model
2.44m
8ft
2.44m
8ft
Platform width -6ft model
1.83m
6ft
1.83m
6ft
C
Height-stowed
2.7m
9ft
2.7m
9ft
D
Length-stowed
9.59m
31ft
10.69m
35ft
IS
Width
2.49m
8ft
2.49m
8ft
F
Wheelbase
2.5m
8ft
2.5m
8ft
G
Ground clearance-center
0.43m
1ft5in
0.43m
1ft5in
PRODUCTIVITY
Lift capacity (restricted)
480kg
1056lbs
480kg
1056lbs
Lift capacity (non-restricted)
340kg
748lbs
250kg
551lbs
Platform rotation
160°
160°
Jib rotation
--
135°
Turntable Swing
360°continuous
360°continuous
Turntable tail swing
1.19m
4ft
1.19m
4ft
Travel speed -stowed
6.3km/h
3.9mph
6.3km/h
3.9mph
Travel speed -raised or extended
1.3km/h
0.8mph
1.3km/h
0.8mph
Gradeability -stowed (2WD)
30%
30%
Gradeability -stowed (4WD)
45%
45%
Turning radius - inside
3.0m
9ft7in
3.0m
9ft7in
Turning radius –outside Turning radius - axle extended outside
5.2m
16ft8in
5.2m
16ft8in
Controls
24V DC Proportional
24V DC Proportional
Solid tires
9.00-20
9.00-20
POWER
Power source
Lovol 1004-4 78 hp (58kw) Perkins 400 61hp (45.5kw) Cummins B3.3NA-C60 4 60HP (45kw)
Auxiliary power unit
24V DC
24V DC
Hydraulic tank capacity
190L
190L
Fuel tank capacity
150L
150L
WEIGHT
2WD
13000kg
28660lbs
13140kg
28968lbs
4WD
13080kg
28836lbs
13220kg
29145lbs
STANDARDS COMPLIANCE EN280, JG/T5101, Q/ADZV001-2008
