The Science Behind Nitinol Sheet’s Shape Memory and Superelasticity

In the world of advanced materials, Nitinol sheet stands out for its seemingly magical ability to “remember” its shape and spring back into form. This is no illusion—Nitinol is a shape memory alloy (SMA) with truly extraordinary capabilities rooted in real and repeatable science.

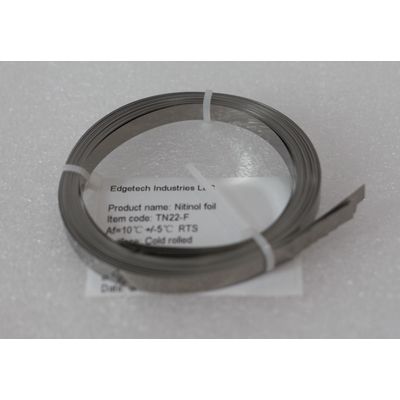

At Edgetech Industries, we supply high-quality Nitinol sheets tailored to specific transformation temperatures and performance needs. But to understand how to harness this alloy effectively, it’s essential to explore the science behind its behavior.

What Is Nitinol?

Nitinol is a binary alloy composed of nickel (Ni) and titanium (Ti) in nearly equal atomic proportions—typically around 55% Ni and 45% Ti by weight. The name “Nitinol” originates from its discovery at the Naval Ordnance Laboratory (Ni-Ti-NOL) in the 1960s.

When processed into a Nitinol sheet, this material exhibits two unique characteristics:

Shape Memory Effect (SME) – The ability to return to its original shape after being deformed when heated.
Superelasticity – The ability to undergo significant deformation and recover immediately at a constant temperature.



Both of these properties arise from solid-state phase transformations at the atomic level.

Phase Transformation: The Heart of Nitinol’s Behavior

Nitinol’s magic lies in its ability to shift between two different crystalline structures:

Martensite: A soft, easily deformable phase that exists at lower temperatures.
Austenite: A stronger, more ordered phase stable at higher temperatures.
This transformation is thermoelastic, meaning it can be reversed through changes in temperature or mechanical stress without permanent atomic rearrangement.
