The versatility of LIQUI-VIEW Base Meters
Flow measurement is used to accumulate a fixed volume of fluid and count the number of times the volume is filled to measure the flowrate. Vortex meters are The Karman Vortex Flow principle is based on a law that was theoretically proven by Theodore von Karman in 1912. He stated that there is a proportional relation between the flow velocity of a fluid and the vortex generation frequency. Thus measuring flow is made possible through detecting the number or pulse of votices that are created when a column-shaped obstruction is build into the pipeline and this alternating number of vortices downstream is counted. This process is called a Karman vortex schedding street and because of the proportional relation the flowrate can be calculated.
Sectors and set-ups
The LIQUI-VIEW Base meters are based on Karman’s principle and are used to measure the flow of water or other liquids in many different set-ups and production sectors. These are some examples of the appliacation of the Vortex Flow meters:
- To measure the amount of water in a heated laboratory system.
- To dose the water that is let into a processing tank.
- To measure the flowrate of water through sprinklerheads.
- To measure the flow of water for concrete mixer vehicles.
The LIQUI-VIEW Base series is a smart lightweight flow and consumption meter for monitoring cleansing, cooling or spa water. The meters are available in a wide range from 0.5 l/min up to 150 l/min at a maximum pressure of 12 bar and can be supplied with a bright, wide-angle and tilting display for local readout. The wide array of possible product feature makes this a very versatile product that can be applied in numerous industries and set-ups. Due to the absence of moving parts the meter is impervious to deposits of hard water an maintenance free.

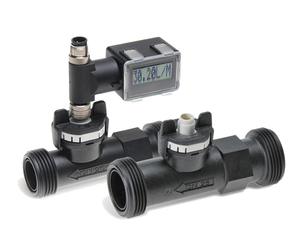

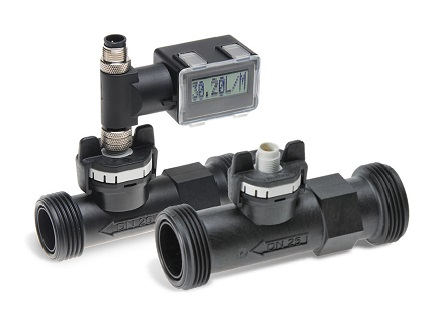

LIQUI-VIEW Liquid Vortex Flow Meter
- Flow range up to 150 l/min (6 models max range; 10, 15, 40, 50, 85, 150 l/min)
- Output Analog 4-20mA or Pulse
- Display models shows actual flow
- Medium Water and water like liquids
- Low Pressure drop No moving parts; maintenance free
- Less sensitivity to humidity or dirt
- Compact light-weight, cost-effective construction
