Using a Gas Liquid Porometer to Reliably Measure Pore Size and Distribution for Filter Media Used in Face Masks
Surgical masks and respirators are typically made of nonwoven polypropylene fabric and mostly consist of three (or more) layers. The first and third layers are generally spunbond, while the middle layer is meltblown. This composition is commonly referred to as SMS technology (Spunbond/Meltblown/Spunbond).
Three layers of respirator fabric
While the efficiency of face masks is measured by norms defined by ASTM or NIOSH, producers of nonwoven materials need to have insight into the pore size of their material as well.
This document briefly explains how the pore size distribution of these nonwoven materials can be measured using a gas liquid porometer with the ‘pressure scan’ method.
Gas Liquid Porometry (GLP), based on the pressure scan method, is a widely used characterization tool for nonwovens. This method measures pore size and pore size distribution of through pores in a fast, simple measurement.
The technique is based on the displacement of an inert and nontoxic wetting liquid which spontaneously wets the material. When the sample is secured in the instrument, an inert gas (e.g. nitrogen) is used to displace the liquid out of the porous fiber network. This ‘wet run’ results in a ‘wet curve’ which represents the measured gas flow through the sample against the applied pressure (inversely proportional to the pore size). In the pressure scan method, the air pressure is continually increased while the resulting flow rates are recorded simultaneously.

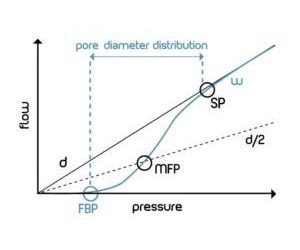

From the wet curve, dry curve and the half-dry curve data, information about the porous network can be obtained, resulting in data on o.a. First Bubble Point or maximum pore size (ASTM F 316-03), mean flow pore size, smallest pore, pore size distribution, etc.
The pressure scan method is preferred for environments where simplicity, speed and reproducibility are the main requirements. In short, this method is the right choice for quality control and assurance of nonwovens.
Nonwoven Media in a FFP2 Respirator

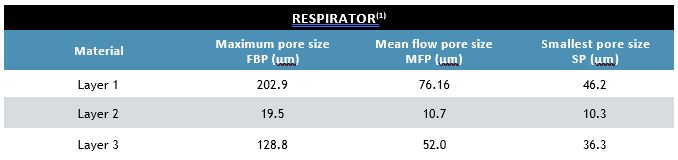

Following the above described method, below results were obtained by measuring the different layers of a FFP2 respirator:
Based on the measurements, we can summarize as follows:

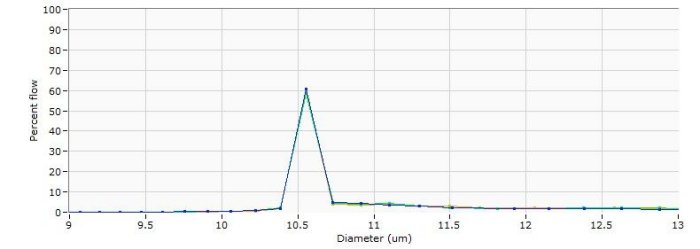

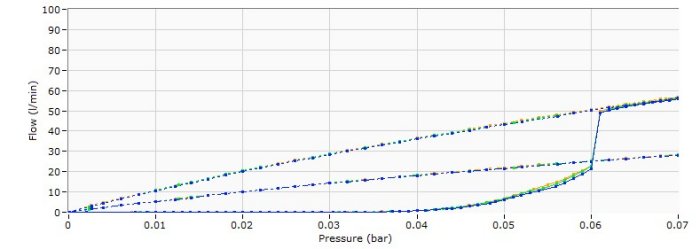

- As demonstrated in figure 1, the measurements are highly reproducible. This proves the value of a porometer for quality control purposes.

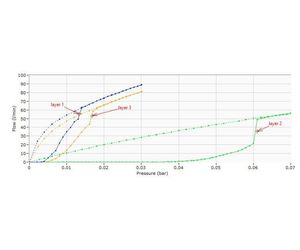

- As seen in figure 2, the outside layers have considerably larger pores compared to their middle layers. The middle layer is hence often called the filtration layer. The middle layer has a narrower pore size distribution compared to the other layers.
- When measuring the complete mask, we measure (conform the theory of porometry) the pores in the layer with the smallest pores (layer 2, the middle layer).
These measurements show that the pore sizes of the respirator are easy to measure with a GLP-pressure scan porometer. The measurements are fast (under 5 minutes) and very reproducible. The data obtained with the porometer can provide valuable input for research and development and/or be a good indicator for quality control.
