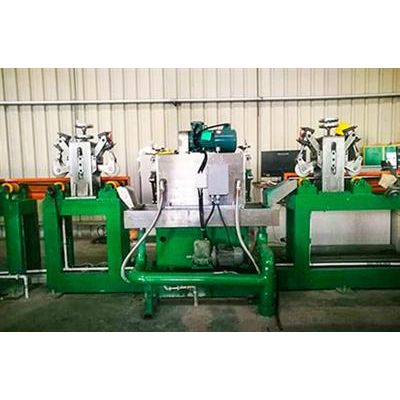

Wireless Transmission Pipe Ultrasonic Flaw Detector

The system is suitable for the automatic detection of various internal and external defects of steel pipes. The principle of ultrasonic flaw detection is that after the ultrasonic wave is coupled into the steel pipe through water, the incident propagation will cause ultrasonic reflection when there is a defect in the pipe. The ultrasonic instrument will alarm the ultrasonic reflected signal after realizing the signal to realize the automatic detection of the defect; Transmission ultrasonic equipment is currently the advanced detection equipment in China.



Wireless Transmission Ultrasonic Pipe Testing Equipment Introduction



Rotating probe configuration



1. Probe configuration on the spindle section 1



A total of 3 probe adjustment frames are placed on section 1 at 120°apart.  Each of the adjustment frames is equipped with a 2-channel combined ultrasonic line focusing longitudinal probe to detect longitudinal defects of the steel tube in a clockwise direction.



Detection of defects: Vertical and vertical defects in the steel pipe are detected in a clockwise direction.



Center frequency: 5.0MHz±10%



Coupling method: water immersion method



Quantity: 3 sets of probes, each consisting of 2 wafers. These 3 sets of probes are evenly distributed in the circumferential direction of the workpiece, spaced 120° apart, on the same section. A total of 6 channels of water immersion probes.



2.Probe configuration on the main shaft section2



A total 3 probe adjustment frames are placed on section2, separated by120°, and a 2-channel combined ultrasonic line focusing longitudinal probe is arranged on each adjustment frame to detect longitudinal defects of the steel pipe counterclockwise.



Detection of defects: counter-clockwise detection of longitudinal defects inside and outside the steel pipe.



the center frequency: 5.0MHz ± 10%



coupling method: water immersion method



Quantity: 3 sets of probes, each consisting of 2 wafers. These 2 sets of probes are evenly distributed in the circumferential direction of the workpiece, spaced 120° apart, on the same section. A total of 6 channels of water immersion probes.



Defect detection standard



Inspection of Longitudinal and Transverse Defects in Ultrasound Steel Pipe: GB/T5777-2008 L2(C5) Standard



Wireless Transmission Pipe Ultrasonic Flaw Detector Performance



Number of channels
12 channels
Flaw detection speed
40m / min
Total gain
100dB,step 0.5dB
Working mode
Single probe transmitting, receiving or dual probe

transmitting and receiving separately
Sensitivity margin
≥50dB
resolution
≥26dB
Dynamic range
≥30dB
Scanning range
0~5000mm
Frequency range
0.5~20MHz
Sampling range
250MHz
Repeat frequency
Signal channel100Hz~4KHzadjustable
Vertical linearity
≤2%
Horizontal linearity
≤1%
Detection method
Full-wave, positive half-wave , negative half-wave
Gate setting
3 gates per channel, A and B are defect gates, and c is an

Interface tracking gate
Alarm indication
Alarm color display and audible alarm for each

channel A, B, C
Delay alarm
Two ways, Delay time0.1~10S, step 0.1S waveform storage,

the unlimited number for waveform playback, printing

and report generation


BKN is an eddy current testing benchmark enterprise and has long been committed to the development and production of bearing hardness and crack eddy current screening equipment. Always feel free to inquiry!
