3D Systems products

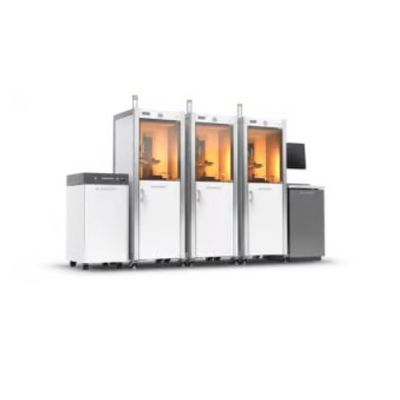

Figure 4^® Modular is a scalable, semi-automated 3D production solution that grows with your business, enabling capacity to meet your present and future needs, up to 10,000 parts per month, for unprecedented manufacturing agility. With expandable capacity up to 24 print engines, automated job management and queuing, automated material delivery, and centralized post-processing, Figure 4 Modular’s end-to-end digital manufacturing workflow is ideal for low to mid-volume production and bridge manufacturing. In addition, each printer can run different materials and different jobs as part of a single high throughput line serving a multitude of parts being produced.

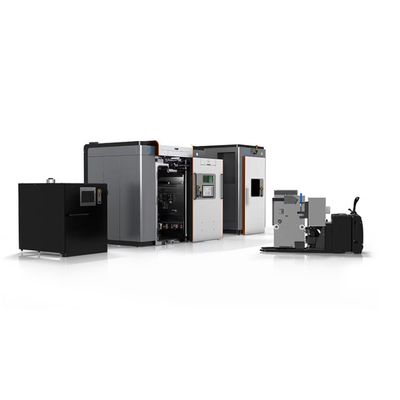

The DMP Factory 500 is comprised of function-specific modules designed to maximize efficiency by optimizing utilization. Each module within the factory solution is fully integrated with a Removable Print Module (RPM) which is vacuum sealable for a controlled print environment and engineered to move between printer and powder modules for continuous production workflow. Printer modules (PTM) are designed for ongoing, 24/7 printing of parts. The Depowdering Module (DPM) and Powder Recycling Module (PRM) are designed to efficiently depowder parts on build platforms and automatically recycle unused powder materials to prepare the RPM for the next build. A DMP Build Changeover Station (BCS) can be utilized to turnover a printing module from one build to the next and can effectively serve two DMP Factory printers that are running different materials. Configure your factory setup with the optimum number and type of modules you need to meet your production workflow needs.
