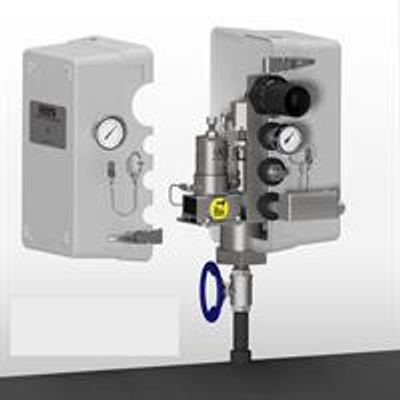

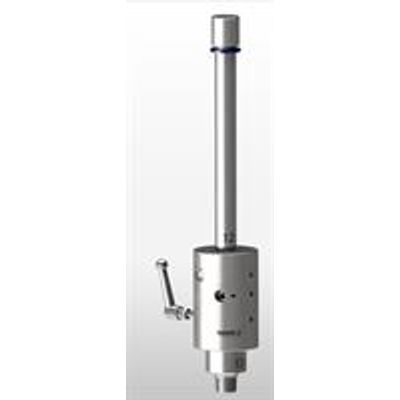

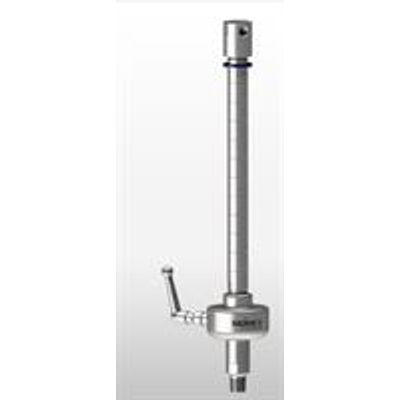

Liquid is the root of many problems when sampling natural gas, either by its condensing out of the sample gas after entering the sample system or carrying over from the pipeline into the probe. Entrained liquid is not always easy to locate. Sometimes it cannot be detected by sight, but, instead, by its impact on analysis or damage to an analyzer. With Genie® Probes & Probe Regulators, a Genie® membrane is inserted directly into a pipeline or vessel which allows for separation of entrained liquids at the prevailing line pressure and temperature conditions. By separating entrained liquids at line pressure and temperature, sample integrity is maintained. Genie® Probes™ also remove all entrained liquids in a gas sample, making them the most effective filters on the market for protection against liquid damage during upset conditions.

Sampling systems specifically tailored to your application. Each Analytically Correct™ Engineered Sample System is designed to meet specific application needs; ensuring sample integrity is maintained throughout the sample extraction and preconditioning process. Visit our ACES Sample Systems page for more information on our custom tailored sample systems and our Sample Systems category for some of our most common and challenging sampling solutions to date.

Avenger Particulate & Coalescing Filters provide sample conditioning and analyzer protection by coalescing and removal of liquid droplets, aerosol mist, and solid particles from gas (vapor) streams as well as removal of sticky particles from liquid. A variety of models are available for handling a wide range of gas and liquid sampling applications.

The Avenger™ 30M Series Filters provide sample conditioning and analyzer protection by using a disposable filter element to remove solids and liquid droplets from gas sample streams. Genie® Membrane Technology™ with Liquid Block™ can be added as an option to the 30 Series filters, in addition to the disposable filter element. The use of Genie® Membrane Technology™ in these filters will remove 100% of entrained liquid, including aerosols, from the sample stream. The Liquid Block™ will completely valve off flow through the membrane to prevent liquid break-through from occurring in the presence of excess liquid. The Avenger™ 30 Series sample filters are easy to install and maintain, especially in heated, densely populated cabinets. The uniquely designed filter housing allows service to the filter element/membrane by simply removing the bowl without disassembly of the fittings.

Avenger Particulate & Coalescing Filters provide sample conditioning and analyzer protection by coalescing and removal of liquid droplets, aerosol mist, and solid particles from gas (vapor) streams as well as removal of sticky particles from liquid. A variety of models are available for handling a wide range of gas and liquid sampling applications.

Avenger Particulate & Coalescing Filters provide sample conditioning and analyzer protection by coalescing and removal of liquid droplets, aerosol mist, and solid particles from gas (vapor) streams as well as removal of sticky particles from liquid. A variety of models are available for handling a wide range of gas and liquid sampling applications. The Avenger Model 38M is the same size as the Model 38, and contains Genie® Membrane Technology. The Liquid Block  is an option for this model. When compared to the Models 33 and 33M, the Model 38M is smaller in size and internal volume making it better suited for lower flow applications.

High performance filters providing the utmost flexibility for coalescing and particulate filtration needs. The Avenger 91 Coalescing and Particulate Filters provide the utmost in flexibility for your coalescing and particulate filtration needs. The conventional 3-port model is a direct replacement for competitive vertically mounted sample filters. However, the 5-port model, with its two different porting configurations allows for greater mounting and application flexibility. These filters were specifically designed for analyzer sample conditioning applications by analyzer sample conditioning specialists.

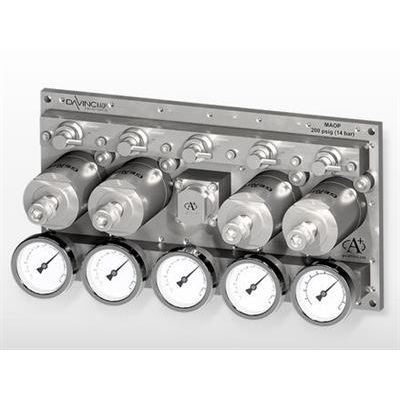

The DaVinci Modular Analyzer Distribution Panel (ADP) is a pre-packaged solution that makes it possible to supply up to four different analyzers with low pressure gas samples from a single source, eliminating the need to establish multiple sample points and reducing the cost of required sampling hardware.

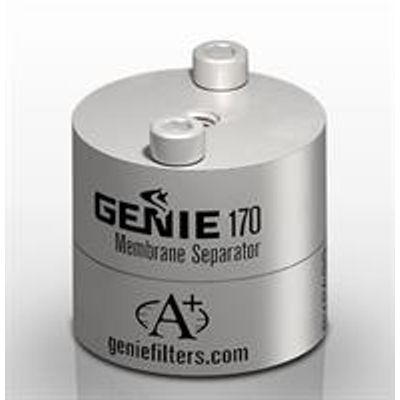

The Model 170 protects gas systems requiring very low sample flow rates on a continuous or intermittent basis. Its small internal volume and low dead volume 1/16€ ports allow the Genie® Model 170 to purge quickly, which is ideal for the removing liquid aerosol droplets from gas samples; it is also perfect for protecting components such as laboratory gas chromatographs. Please note that special low volume fittings must be ordered to use a Genie® Model 170 properly. A Universal Assembly™ preassembled kit is also available which includes all the necessary components required for easy, proper installation into an existing sample system. This model includes a 316 SS Genie® Model 170 equipped with your choice of membrane, rotameter, mounting bracket, and all basic fittings (outlet tubing not included).

Liquid in a sample conditioning system can damage analyzers and lead to inaccurate sample analysis; directly affecting the bottom line. Applying our Analytically Correct™ designs to your sampling system can prevent these occurrences.
